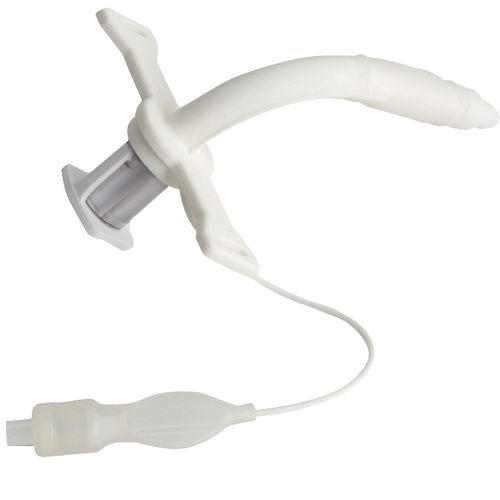

Tracheotomy cannula Bivona™
curvedautoclavableflexible

Tracheotomy cannula - Bivona™ - ICU medical - curved / autoclavable / flexible

Add to favorites

Compare this product

Characteristics

Medical procedure: tracheotomy
Form: curved
Options: flexible, autoclavable, atraumatic
Length (mm): 60 mm, 70 mm, 80 mm, 88 mm, 98 mm
(2.4 in, 2.8 in, 3.1 in, 3.5 in, 3.9 in)
External diameter (mm): 7.4 mm, 8.8 mm, 10 mm, 10.5 mm, 11 mm, 11.8 mm, 12.3 mm
(0.3 in, 0.3 in, 0.4 in, 0.4 in, 0.4 in, 0.5 in, 0.5 in)
Inner diameter: 5 mm, 6 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm
(0.2 in, 0.2 in, 0.3 in, 0.3 in, 0.3 in, 0.3 in, 0.4 in)

Description

Overview
The Bivona™ Adult TTS™ Tracheostomy Tube combines cuffed and uncuffed functionality in a single silicone device. When inflated the cuff seals the trachea to reduce aspiration and optimise ventilation; when deflated it collapses against the shaft to facilitate weaning and support phonation. Silicone construction provides a soft, flexible option and the TTS design allows clinicians to switch between cuffed and uncuffed management without tube exchange.

Recommended for

Patients with sensitive tracheal mucosa or stoma site
Patients who require speech capability
Intermittent or nocturnal ventilation
Patients undergoing weaning from mechanical ventilation

Product Benefits

TTS cuff profiles as an uncuffed tube when deflated to minimise insertion trauma
Silicone shaft remains flexible in the trachea for patient comfort
Wire-reinforced shaft for improved kink and crush resistance
Clip-in obturator with hollow tip permits tube changeover over a guidewire
Superslick™ coating on internal and external surfaces reduces secretion encrustation and eases suctioning/cleaning
Adult Bivona™ tubes are reprocessable up to ten times
Clear pilot balloon for quick cuff identification

Common applications / procedures

Airway management
Intermittent/nocturnal mechanical ventilation
Leak management
Weaning and speech facilitation
Hospital and home care

Ordering Information
Box quantity: 1

Specifications / Ordering Table
Reorder Code | Size | ID (mm) | OD (mm) | Length (mm) | Units per Case
670150 | 5.0 mm | 5.0 mm | 7.4 mm | 60.0 mm | 1
670160 | 6.0 mm | 6.0 mm | 8.8 mm | 70.0 mm | 1
670170 | 7.0 mm | 7.0 mm | 10.0 mm | 80.0 mm | 1
670175 | 7.5 mm | 7.5 mm | 10.5 mm | 80.0 mm | 1
670180 | 8.0 mm | 8.0 mm | 11.0 mm | 88.0 mm | 1
670185 | 8.5 mm | 8.5 mm | 11.8 mm | 88.0 mm | 1
670190 | 9.0 mm | 9.0 mm | 12.3 mm | 98.0 mm | 1

Note
Packaged individually sterile with clip-in obturator, twill trach tie and cap plug.

Technical characteristics

Model: Bivona™ Adult TTS™
Material: Silicone (soft, flexible)
Cuff type: TTS — inflatable seal when inflated; profiles as uncuffed when deflated
Coating: Superslick™ on internal and external shaft surfaces
Shaft: Wire-reinforced for kink and crush resistance
Obturator: Clip-in obturator with hollow tip for guidewire changeover
Pilot balloon: Clear pilot balloon for cuff identification
Reprocessing: Reprocessable up to 10 times (adult tubes)
Packaging: Individually sterile; includes clip-in obturator, twill trach tie and cap plug
