Liquids degassing module 0001-6683

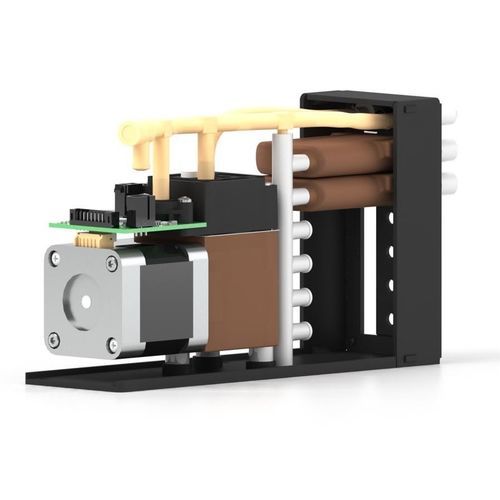

Overview Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single-stage pump reduces overall size. A Systec AF membrane reduces internal volume while maintaining degassing performance, and an open polypropylene bracket simplifies integration into most instrument platforms. It is a 2 channel degasser.

Degasser Resources
Degasser Brochure - IDEX Health & Science degassers improve fluidic instrument precision and reliability by removing dissolved gases from fluids before they outgas and form bubbles.
In-line Degassing Product Guide - Describes how in-line degassing modules remove dissolved gases from a variety of fluids to ensure optimal fluidic performance for instruments.
Film Degasser Brochure - Describes film degasser technology using a high-efficiency membrane and a unique flow channel design to increase solvent compatibility and reduce fluidic resistance.

Specifications / Technical specifications

• Length (in): 6.84
• Tubing ID (in): 0.035
• Tubing ID (mm): 0.889
• Liquid Connections: ¼-28 UNF, ¼-28 UNF
• Chemical Compatibility: See Solvent Compatibility Chart
• Height (in): 4
• Internal Volume Per Channel (µL): 285
• Max Flow Rate (mL/min): 10
• Number of Channels: 2
• Recommended Flow Rate (mL/min): 2.8
• Width (in): 2.05
