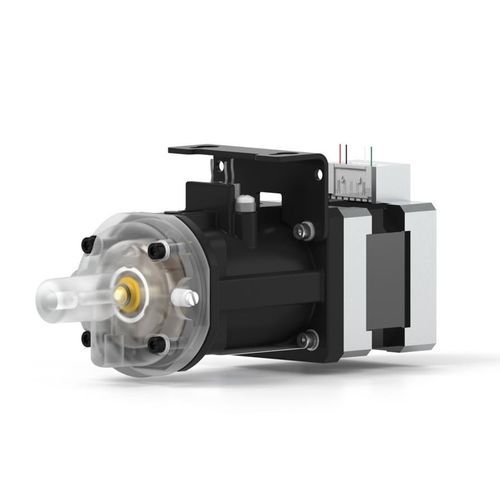

Laboratory micropump V17

dispensingmedicalfor liquids

Description
The V17 dispense pump delivers precise low-volume fluid dispensing for lower-pressure clinical and laboratory instruments. It features a molded acrylic (PMMA) pump head and is specified for an anticipated life of 2 million cycles, offering an economical balance of accuracy and service life for low-cycle applications.

Product information

• IDEX Part Number: V17-0100C-201XXD-EB
• Short Product Number: 277003
• Unit of Measure: Each

Technical specifications

• Pump Volume (µL): 100
• Recommended Max Pump Operating Pressure: 1520 psi (max pressure achieved at <35% max speed based on half coil chopper drive operation at 24V)
• Pump Max Dispense Rate (mL/min): 6 mL/min (max speed achieved at <35% max pressure based on half coil chopper driver operation at 24V)
• Pump Precision: <1% at 2 µL
• Pump Wetted Materials: Acrylic (PMMA), UHMW, Viton, Zirconia
• Pump Fluidic Ports: Two 1/4-28 UNF
• Home Position: Dispense
• Pump Resolution (Full Step): 2000
• Anticipated Life: 2 million cycles
