Thermal pain analgesiometer 39

for animal researchfor behavioral researchfor research

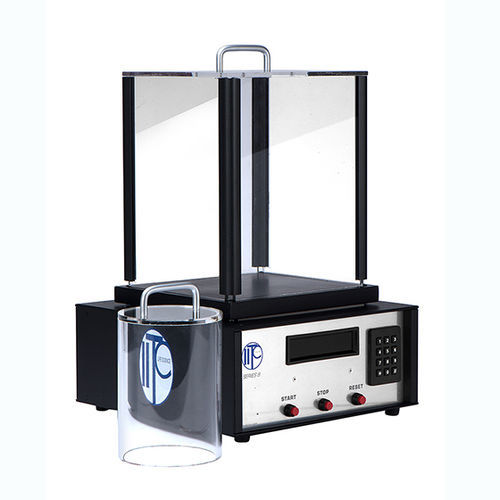

The IITC Hot Plate Analgesia Test Meter is used for latency testing in rats and mice. The animals are placed on a black anodized, aluminum plate (11” x 10.5” x ¾”, 275mm x 263mm x 15mm) which is heated uniformly. - Temperature is indicated in 0.1°C increments - Holding accuracy is +/- 0.1°C - Suitable for Mice and Rats - Digitally controlled - Footswitch operation - Optional USB software Details: All functions are entered via a keypad on the front panel, including: - Current temperature - Animal number - Current time - Current date - Output data to printer - Set point temperature in Celsius The plate’s surface temperature can be adjusted from ambient up to 75°C. The plate maintains a consistent temperature throughout, providing accurate tests. All systems are supplied with both a mouse and rat enclosure, allowing standard testing of both animals. If needed, IITC allows purchase of each enclosure separately. Technical Specifications: - Footprint: 12” x 12” x 5” - Equipment Material: Powder coated aluminum - Hot Plate Material: Anodized aluminum - Hot Plate Dimensions: 9 ¾” x 8 ½” - Animal Enclosure Material: Plexi-Glas - Animal Enclosure Diameter: Mouse - 4” Dia.; Rat - 7 1/2” x 8 1/2” - Temperature Range: Ambient to 65°C (0.1°C increments) - Switchable: 110/220V - 3 Amp - Series 8 Software: Windows compatible - CE Certified Software: The IITC Series 8 software is available for each Series 8 unit. The software captures data in real-time from one of the units and can be exported into Excel or other spreadsheet programs. Data supplied: Test, Animal number, Date, Time, Duration, Temperature, Starting temperature, Stop temperature, Set point temperature, Active intensity, Idle intensity, Cut off time, Reaction time, Top end speed, Distance The data supplied will depend on which Series 8 equipment is used with the corresponding software.
