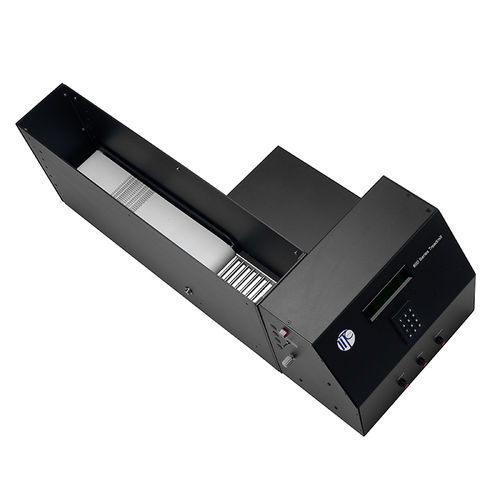

Behavioral research preclinical research treadmill 801

for ratsfor mice

The IITC Animal Treadmills for mice and rats is a general purpose exerciser that can be ordered up to five (5) lanes. Our unit is designed to enable the operator a more precise reading in conjunction with the amount of exercise given to the animal. This digitally controlled unit has a high degree of repeatability. - Mice and Rats - 1 to 5 lanes - Textured Belt - Shock grid for each lane - Test time adjustable for each lane - Adjustable ramp speed from 1 to 18 meters per minute - Adjustable ramp inclination from 0 to 40 degrees in 5 degree increments - Individual stimulation count for each lane - Footswitch - Software – optional Test parameters are entered via the front panel keyboard. All the test results are displayed on the front panel display. The test ending results for each position are speed, test time, number of times stimulus was applied as well as distance traveled in meters. The user can select from one to five lanes at a time to be included in the test. Additional lanes up to a total of five can be ordered. On the IITC Animal Treadmills we have incorporated a shock grid. The shock grid can be turned on and off at will by the user. The shock grid is located at the end of the ramp. The equipment is supplied with a universal power supply that is built in. On all versions, the ramps can be inclined from 0 to 40 degrees in 5 degree increments. When using multiple lanes each lanes parameters and incline are controlled separately. Part # - 801: Animal Treadmill with shocker (1 lane) - 802: Animal Treadmill with shocker (2 lane) - 803: Animal Treadmill with shocker (3 lane) - 804: Animal Treadmill with shocker (4 lane) - 805: Animal Treadmill with shocker (5 lane) - 806: Animal Treadmill Each additional lane up to 4 - Series 8: Software Two year warranty 120/240V CE - 800 Mice and Rat Treadmill - Footprint: 1 Lane – 33 ½” x 13” x 11 ¾” - Footprint: 5 Lane – 33 ½” x 35” x 11 ¾” - Equipment Material: Powder coated aluminum - Lane dims: 5 1/8” wide - Tread dims: 16 ¾” x 4 ¼” - Angle: 0 to 30 deg. (5 deg. Increments) - Range of Speed: 1 to 18 Meters per min., up to 50 Meters per min. upon request - Shock Grid dims: 7 ½” x 3 ¾” - Shock Grid: 35-150V, shock output adjustable by user - Cover Material: Plexi-Glas - Switchable: 110/220V - 5 Amp. - Series 8 Software: Windows Can you test both mice and rats with one system? Yes, the system is designed to be able to have both mice and rats tested. What is the maximum speed? Top speed is 50 meters per minute. Can the angle be adjusted on the lanes? Yes, you can adjust in 5 degree increments up to 30 degrees. Is the software required? No, software is not required to operate the system. All our Series 8 line is controlled via the keypad on the front panel of the equipment. Your test data is displayed on the front panel and is written down. Can I order the software later if I decide I want/need it? Yes, absolutely you can order our Series 8 Software for data collection if you decide you require a digital record of your test results. Technical Specifications: - Species: Mice and Rats - Number of Lanes: 1 to 5 - Ramp Speed: 1 to 18 meters/min (up to 50 meters/min on request) - Ramp Inclination: 0 to 40 degrees (5 degree increments) - Shock Grid: 35-150V, user adjustable - Footprint (1 Lane): 33 ½” x 13” x 11 ¾” - Footprint (5 Lane): 33 ½” x 35” x 11 ¾” - Lane Width: 5 1/8” - Tread Dimensions: 16 ¾” x 4 ¼” - Shock Grid Dimensions: 7 ½” x 3 ¾” - Material: Powder coated aluminum, Plexi-Glas cover - Power: 110/220V switchable, 5 Amp - Software: Optional, Series 8 (Windows) - Warranty: 2 years - Certifications: CE
