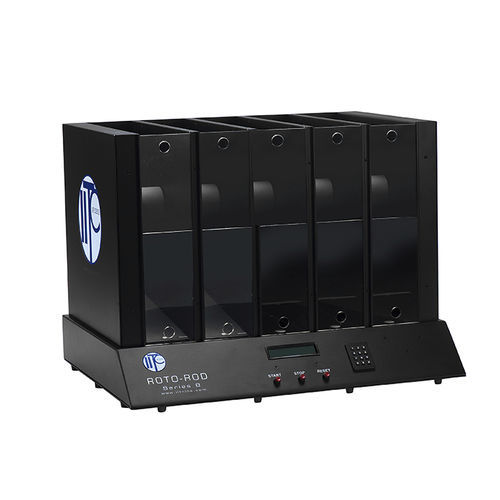

Digital rotarod 755

for ratsfor mice

The IITC Rotarod Test is used to assess the effect of drugs on the motor coordination or fatigue resistance on mice and rats using one unit in a safe and humane way. The animals are placed on textured drums to avoid slipping. When an animal drops onto the individual sensing platforms below, test results are recorded digitally and displayed on the front panel. FEATURES No adjustments required on sensing platforms Digitally controlled Five (5) lanes standard Adjustable test length Adjustable start speed Adjustable top end speed Adjustable ramp speed Forward and reverse rotation mode Distance recorded in Meters Footswitch Software – optional Series 8 Software IITC’s Rotarod Test has the capabilities of having up to five mice or rats tested at a time standard. The user can select from one to five lanes to be included in an experiment. For mice experiments 1¼ inch diameter drums are supplied and for rat experiments 3¾ inch diameter drums are supplied. All that is needed is a standard Philips screwdriver to change the drums, no other tool required. The LED display shows all test results for each animal position; they are: Stopping RPM, length of test and distance traveled. Animals drop is sensed by accurate magnetic switches that never need adjusting versus other units on the market today which use photoelectric sensing. Vertically sliding acrylic front panels prevent escape of animals. Literature Reference: Jones & Roberts, F. Pharm., Pharmacol., 1968, 20, 302 The electronic gear is built into the base of the unit. All parameters are digitally controlled and entered via the keypad on the front panel.
