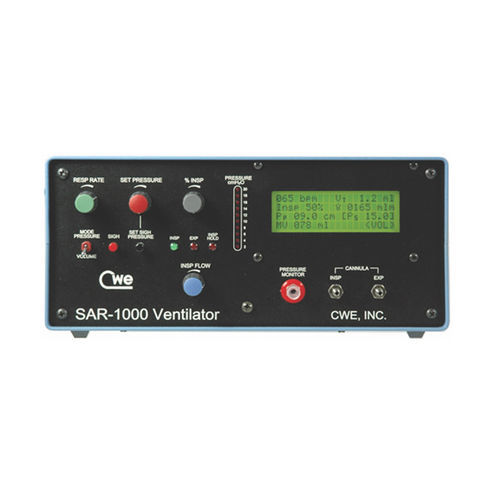

Veterinary ventilator SAR-1000

for animal researchmedicalelectronic

SAR-1000 Small Animal Ventilator Our newest and most advanced ventilator! The SAR-1000 has a simple and intuitive interface, with direct setting of Tidal Volume, Rate, I/E Ratio, and much more. Now features automatic Sigh function. Complete remote control via USB interface allows advanced functions such as constant-volume breath-holds, external triggering, etc. Features - Pressure or volume-cycled operation - Wide tidal volume and rate range - User-friendly set-up and operation - Suitable for mice to guinea pig size - Direct display of Tidal Volume & all parameters - Remote control via USB port - Safe with oxygen and anesthesia - Multi-animal set-ups Product Table Part No. | Model | Description 12-03000 | SAR-1000 | Small Animal Ventilator, 120/240V 50/60Hz, with software and accessories 12-04000 | CTP-VA-1 | External Valve Assembly, rodent size (same as SAR-1000 internal valves) 12-05000 | CTP-VA-3 | External Valve Assembly, rabbit, cat, small dog size 12-10010 | MVA-4 | Electrical adapter for adding up to four external valve assemblies 12-10020 | EFM-1 | Flowmeter/regulator with stand, specify range: 1, 2.5, 5, 10 or 20 liters/min 12-10021 | EFM-4 | Flowmeter/regulator manifold w/ four flowmeters on stand, specify ranges 12-10032 | PUMP-8 | External air pump, 8 liter/min range 13-21031 | TRACH-1 | Endotracheal tube, flexible Teflon with Luer connector (mouse), pack of 5 13-21032 | TRACH-2 | Endotracheal tube, flexible Teflon with Luer connector (rat), pack of 5 13-13000 | Isoflurane Kit | Complete anesthesia kit for Isoflurane includes vaporizer, fittings, flowmeter, & tubing The SAR-1000 incorporates numerous features and innovations resulting from long experience with small animal respiratory support and monitoring. Accuracy of respiratory parameters is assured through the use of advanced sensors for airflow and pressure. The simple but versatile operating modes allow safe long-term ventilation of small, delicate animals. Besides its primary use as a normal rodent ventilator, it can operate under remote computer control using the built-in USB port and a host PC. Basic control and monitoring software is provided, and specialized software packages are optionally available from CWE, Inc. Using such external control programs, it is possible to synchronize the ventilator for imaging purposes, do neural-controlled ventilation, constant-CO2 ventilation, and much more. The SAR-1000 Small Animal Ventilator is a versatile and easy-to-use ventilator for mice, rats, and other small animals. Volume mode delivers a fixed tidal volume on each breath, and pressure mode causes inflation to stop at a preset airway pressure. In either mode, lung inflation is maintained at the end of inspiration until the percent inspiration (%Insp) time has elapsed. This end inspiratory pause (IEP) improves gas exchange and the overall efficiency of ventilation. In volume mode, the ventilator operates on the proven flow-time principle, where a known airflow is delivered for a set time, thus delivering a fixed volume. In pressure mode, airflow is simply adjusted to give a suitable inspiration time. Actual tidal volume is computed and displayed on the LCD display, as well as minute ventilation (MV) and other respiratory parameters. A built-in air pump allows completely self-contained operation. This pump draws in room air, oxygen, or anesthetic gasses through a rear-panel port. The SAR-1000 is fully compatible with oxygen and inhalational anesthetic gasses. An optional anesthesia kit turns the SAR-1000 into a complete and compact anesthesia ventilator. Mixing manifolds are available for combining air or oxygen with anesthetic gasses. The ventilator is expandable to multiple animals (or larger animals) via a rear-panel expansion port. Using available external valve assemblies, up to five mice or rats can be ventilated based on a single SAR-1000. Valve assemblies for larger animals are also available. Please refer to the accessories list for details. Although the SAR-1000 comes complete with everything needed for immediate operation, a variety of accessories and replacement components are offered. These include a range of endotracheal tubes, connectors, tubing sets, etc. Custom configurations can be provided to meet special requirements. Technical Specifications / Features - Pressure or volume-cycled operation - Wide tidal volume and rate range - User-friendly set-up and operation - Suitable for mice to guinea pig size - Direct display of Tidal Volume & all parameters - Remote control via USB port - Safe with oxygen and anesthesia - Multi-animal set-ups - Built-in air pump for self-contained operation - Expandable to ventilate multiple animals - Compatible with anesthesia kits and mixing manifolds - LCD display for tidal volume, minute ventilation, and other parameters
