EMG electrophysiology amplifier BMA-400

ECGEEG4-channel

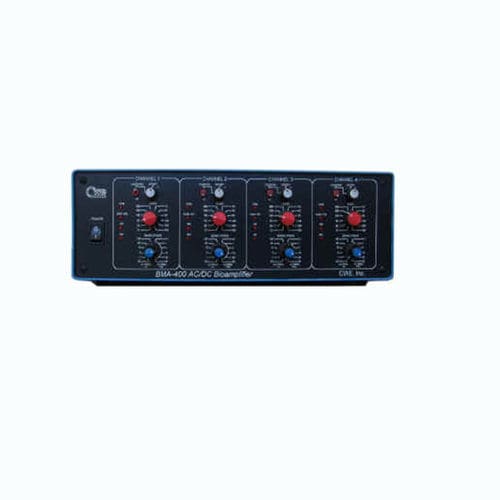

Full-featured, low-noise 4-channel extracellular amplifier The BMA-400 AC/DC Bioamplifier is a low-noise, four-channel instrument for amplifying EEG, ECG, EMG, and other extracellular biopotential signals. It features exceptionally low noise, a wide gain range, and sharp cutoff bandpass filters. It can be used as a stable DC amplifier, and includes adjustable DC input offset controls. The BMA-400 features a high-impedance instrumentation amplifier differential front-end, for the lowest noise and best rejection of spurious signals. Gain is adjustable from 10X – 50,000X, extensible to 500,000X with optional head-stages, making it possible to resolve microvolt level signals with ease. A special logic input allows a stimulus to be passed through the recording electrodes. This stim/record input, as well as the four channel outputs, are connected to a multi-pin connector on the rear panel for convenient cable connections. Four input connectors are provided for custom wiring of the inputs. Pre-wired cables are available as an option. Applications for the BMA-400 Bioamplifier include multi-channel EEG, EMG, and other extracellular biopotential measurements. For recording from human subjects, optional ISO-Z Isolation Amplifier head-stages are available. For high-impedance microelectrode work, the SUPER-Z head-stage is available, which provides a calibrator as well as additional gain and buffering. - Low-noise, four-channel AC/DC bioamplifier - Amplifies EEG, ECG, EMG, and other extracellular biopotential signals - Exceptionally low noise and wide gain range - Sharp cutoff bandpass filters - Stable DC amplifier with adjustable DC input offset controls - High-impedance instrumentation amplifier differential front-end - Gain adjustable from 10X – 50,000X (up to 500,000X with optional head-stages) - Stim/record logic input for passing stimulus through recording electrodes - Multi-pin connector for convenient cable connections - Four input connectors for custom wiring - Optional pre-wired cables - Optional ISO-Z Isolation Amplifier head-stages for human subjects - Optional SUPER-Z head-stage for high-impedance microelectrode work
