Rotational viscometer CBC ROTAVISC lo-vi Package

laboratory

Product overview

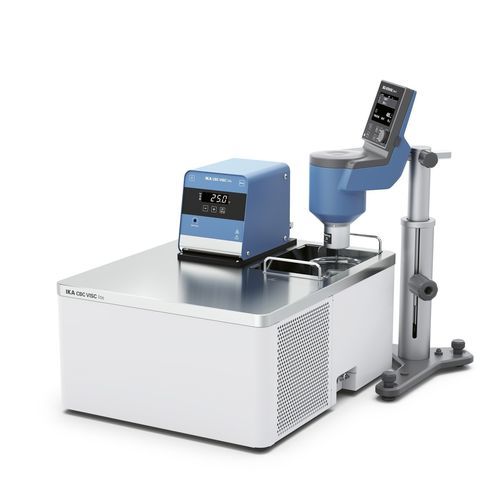

The viscosity of most liquids depends on the temperature. To obtain reliable measurement results, accurate temperature control is crucial. The CBC ROTAVISC lo-vi Package is the ready-to-connect solution for precise viscosity measurement of temperature-dependent samples in the laboratory. The package combines the ROTAVISC lo-vi rotational viscometer with the CBC VISC lite heating and cooling bath circulator so the sample is measured directly in the heating bath under controlled conditions.

Key features

• ROTAVISC lo-vi: high-performance rotational viscometer with a measuring range from 1 - 6,000,000 mPas.
• CBC VISC lite heating and cooling bath circulator: temperature range from -25 °C to 125 °C; space for two standard beakers (600 ml) allowing a second sample to be pre-tempered during measurement.
• Equipped with natural refrigerant R290 for improved ecological footprint.
• Optimized water flow management in the insulated bath for fast and precise temperature control.
• External pump connection enables use with standard heating vessels (e.g., according to DIN) for absolute viscosity definition with ELVAS spindles or double-walled beakers.
• Easy to maintain: removable and cleanable air filter.
• Compatible with labworldsoft® laboratory software for automation, control and documentation of measurement results.

Benefits

• Save time: pre-temper a second 600 ml beaker during measurement.
• Perfect results: fast and precise temperature control in the insulated bath.
• Improved ecological footprint: use of environmentally friendly refrigerant R290.
• Flexible application: external pump connection for additional heating/measurement setups.
• Easy maintenance: removable/cleanable air filter.
• Compatibility and automation: integration with labworldsoft®.

Scope of delivery

• ROTAVISC lo-vi control S000
• ROTASTAND
• CBC VISC lite
• SP set-1
• PT 100.8

Caractéristiques / spécifications techniques

• Measuring range (ROTAVISC lo-vi): 1 - 6,000,000 mPas.
• Bath temperature range (CBC VISC lite): -25 °C to 125 °C.
• Beaker capacity / accommodation: space for two standard 600 ml beakers (second sample can be pre-tempered).
• Refrigerant: natural refrigerant R290.
• Compatibility: ROTAVISC and CBC VISC lite compatible with labworldsoft® for automation, control and documentation.
• External pump connection: supports heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers.
• Maintenance: easily removable and cleanable air filter.
• Package contents: ROTAVISC lo-vi control S000; ROTASTAND; CBC VISC lite; SP set-1; PT 100.8.
• Ident. No. / SKU / ProductID: 0010014046.
• Availability: InStock (as indicated on the page).
