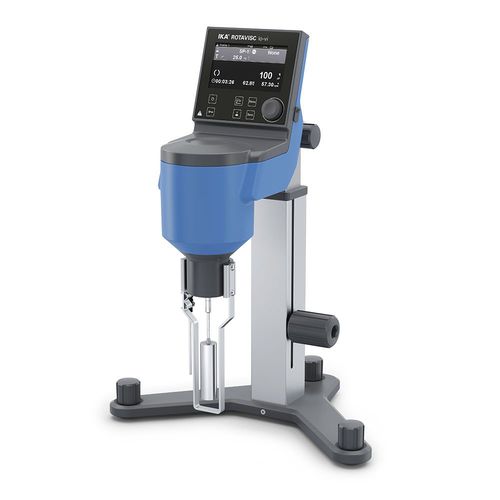

Rotational viscometer ROTAVISC lo-vi Complete

laboratory

The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand. Easy to operate The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks. Highest measurement accuracy The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %. Stepless speed ROTAVISC is a viscometer, which offers stepless speed adjustment. Viscosity measuring range lo-vi Complete: 1 - 6.000.000 mPas me-vi Complete: 100 - 40.000.000 mPas hi-vi I Complete: 200 - 80.000.000 mPas hi-vi II Complete: 800 - 320.000.000 mPas Viscosity Accuracy (FSR) : 1 % Viscosity Repeatibility (FSR) : 0.2 % Spring torque : 0.0673 mNm | 0.7187 mNm | 1.4374 mNm | 5.7496 mNm Measuring spindle series : SP set-1 | SP set-2 Motor rating output : 4.8 W Overload protection : yes Direction of rotation : right Display & speed control : TFT Speed range : 0.01 - 200 rpm Setting accuracy speed : 0.01 ±rpm Torque display/measurement : yes Timer: yes Time setting range : 0.017 - 6000 min Temperature measurement resolution : 0.1 K
