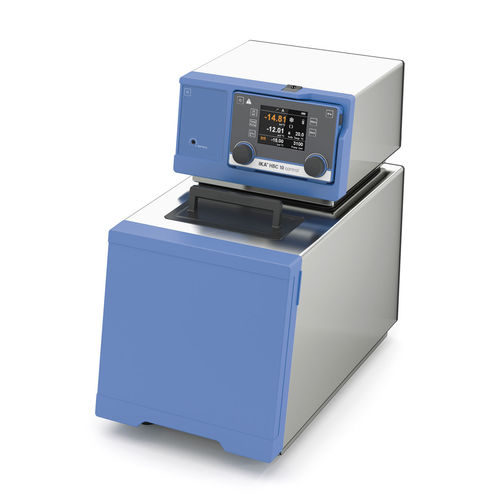

Circulating water bath HBC 10 control
heatingbenchtop

circulating water bath
circulating water bath
circulating water bath
Add to favorites
Compare this product


Characteristics

Temperature control
circulating, heating
Configuration
benchtop
Heating capacity

2,500 W

Temperature range

Min.: -20 °C
(-4 °F)

Max.: 250 °C
(482 °F)

Weight

18 kg, 18.3 kg
(39.68 lb, 40.34 lb)

Height

456 mm
(18 in)

Width

275 mm
(10.8 in)

Description

The HBC 10 heated bath circulator heats up to a max. temperature of 250 °C. It has a high quality stainless steel bath with a volume of 7.5 – 10.5 liters. The TFT display (control) is in color and illustrates all relevant parameters. With just one key, the internal temperature regulation can be switched to external temperature regulation. The large surface of the radiator allows for an optimum heat exchange and a gentle heating process of the medium. Push and turn buttons allow for intuitive menu navigation. The menu comes in different languages. The superior insulation allows for a remarkably fast heat-up time. The easy to clean bath has a front drain valve for safe emptying. In order to drain the system, a hose is connected so there is no direct contact with the tempering fluid. With customer safety as our highest priority, the HBC 10 basic conforms to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. With the unique WiCo Wireless Controller, the unit can be operated from a distance of up to 10 meters/3 ft. • Temperature accuracy: ± 0.02 K • Integrated cooling coil • Adjustable safety circuit • Powerful, speed-controlled pressure/suction pump • Push and turn buttons for an intuitive menu navigation • Large easy to read LED display for pump speed and temperature • Visual and acoustic safety warnings • USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as updating the device software through our website Appliance type : Circulation thermostat Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL
