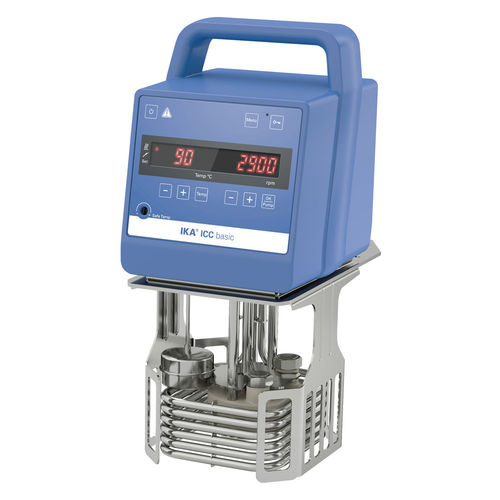

Compact immersion circulator ICC basic for tempering of liquids up to 150 °C. Suitable to use in open or covered bath vessels.
The integrated pressure/ suction pump allows ICC basic to be used for internal and external applications. Just connect the optional pump set. ICC basic also has an optional cooling coil that allows to work close to ambient temperatures.
The ICC basic circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
Temperature range: RT - 150 °C
Temperature stability: ± 0.02 K
Powerful, speed-controlled pressure/suction pump
Holding clamp for attaching the circulator to a bath is included
Convenient carrying handle und integrated brackets
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Adjustable safety circuit
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
Technical Data
Appliance typeCompact immersion circulators
Class designation acc. DIN 12876III
Identification according to DIN 12876FL
Heat output2000 W
Working temperatureroom temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling)-20 °C
Temperature displayyes
Temperature controlPT 100
Working temperature sensorPT 100
Safety temperature sensorPT1000
Working temperature displayLED
Safety temperature displayLED
Temperature stability DIN 128760.02 ±K
Display resolution0.1 K
Display for operation with ext. sensor yes
Set temperature resolution0.1 ±K
Warning function optical yes
