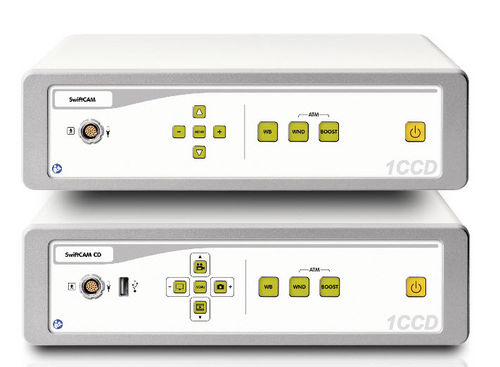

Endoscope camera SwiftCAM series

digitalCCDUSB

· Multilingual on-screen-menu · Digital zoom · Camera control with keyboard · Character generator Technical Data Camera head: · Aspect ratio: 4:3 · Image sensor: 1/3’’ CCD · Immersible (using the attached cap) System · Power supply: 100/240 VAC, 50-60 Hz · Fuses: 2 Fine fuses, 5x20 mm, delay acting 3,15 AH (l=1500A) · Power consumption: 20 VA · Image resolution: PAL 752 x 582/ NTSC 768 x 494 · TV resolution: > 470 lines · Sensivity: < 1 lux (1/1.4) · White balance automatically, with data hold shutter speed PAL (NTSC): 1/50 (1/60) to 1/100.000 sec Video out terminal · 2x Video; 2x S-Video; 1x Y-Pb-Pr (Component); 1x SDI; 1x USB 2.0 Standard · Protection class: I · Application part: Type BF · IEC 601-1, EN 60601-1; classification acc. 93/42/EEC: I Dimensions · Control unit (WxHxD): 355 x 103 x 253 mm; 4,4 kg Delivery contains · CCU, camera head with 3m cable, mains cable, User manual, Y/C cable, BNC cable, HDMI - DVI cable (optional), HDMI cable (optional), USB Stick (optional) Video system · PAL /NTSC
