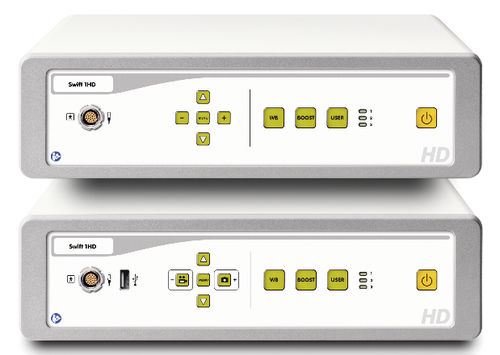

Endoscope camera Swift 1HDfull HDHD1CMOS
Add to favorites
Compare this product
Characteristics
- Applications
- for endoscopes
- Resolution level
- full HD, HD
- Sensor type
- 1CMOS
Description
· Full HD resolution
· High speed shutter
· Multilingual menu
· Remote camera head
Technical Data
Camera head:
·
Aspect ratio: 16:9
·
Image sensor: 1/3 MOS
·
Immersible (using the attached cap)
System
·
Power supply: 100/240 VAC, 50-60 Hz
·
Fuses: 2 Fine fuses, 5x20 mm, delay acting 3,15 AH (l=1500A)
·
Power consumption: 20 VA
·
Image resolution: full HD 1920 x 1080
·
TV resolution: > 1000 lines
·
Sensivity: < 3 lux (1/1.4)
·
White balance automatically, with data hold
shutter speed: 1/50 (1/60) to 1/100.000 sec
Video out terminal
·
1x HDMI / DVI
·
1x Y-Pb-Pr (Component)
·
1x Video (PAL / NTSC)
·
1x S-Video (PAL / NTSC)
·
2x HD SDI (optional)
·
LAN (optional)
Standard
·
Protection class: I
·
Application part: Type BF
·
IEC 601-1, EN 60601-1; classification acc. 93/42/EEC: I
Features
·
White balance, boost function
·
On-screen-menu
·
3 user settings storable
·
2.5 digital zoom
·
Freeze function
·
Character generator
Dimensions
·
Control unit: 355 x 103 x 253 mm (WxHxD); 4,5 kg
Delivery contains
·
CCU, camera head with 3m cable, mains cable, Y/C cable, BNC cable,
HDMI - DVI cable, HDMI cable, RGB cable, user manual
