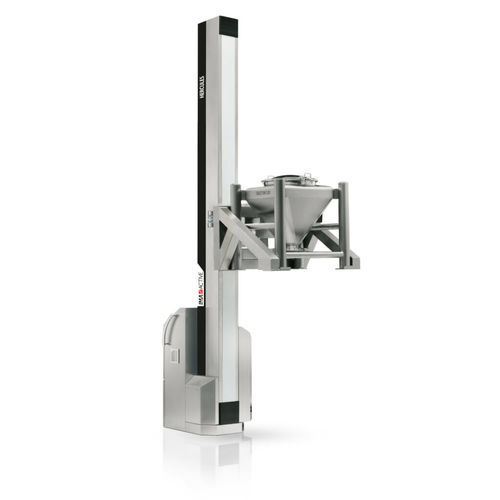

Heavy-duty lifting column HERCULES series

Product overview
HERCULES lifting columns are engineered for handling drums, containers and IBCs/Bins and for lifting or blending small machines such as pneumatic conveyors, mills and calibrators. Each unit integrates the certified Blocstop™ system to stop the lifting arm in case of failure. Available in mini, midi and maxi variants; a Mix version combines lifting and blending functions.

Highlights

• Easy maintenance: main motor located at the base for simplified access.
• Maximum safety: certified Blocstop™ to stop the lifting arm in case of failure.
• Overload prevention: optional load cell weighing system to stop overload.
• Easy cleaning: precise finishing for straightforward cleaning operations.

Invert. Blend. Adapt.
Equipped with dedicated holding systems, the HERCULES arm can invert drums with the Aries system and blend IBCs/Bins with the Trigon system. Manual or automatic rotation of the column body is available as an option.

Technical data (table)
Model | HERCULES mini | HERCULES midi | HERCULES maxi
Maximum load capacity for lifting (Kg) | 500 | 990 | 2000
Maximum load capacity for blending (Kg) | – | 500 | 1000
Lifting/lowering speed (m/sec) | 0.09 | 0.08 | 0.015 ÷ 0.05
Power supply | 400 V – 50 Hz – 3 phase AC | 400 V – 50 Hz – 3 phase AC | 400 V – 50 Hz – 3 phase AC
Electric power installed – lifting (kW) | 1.5 | 3 | 4
Electric power installed – mixing (kW) | – | 5.5 | 11
Electric power installed – arm rotation (kW) | 0.55 | 0.75 | 1.5
Electric power installed – column body rotation (kW) | 0.18 | 0.18 | 0.12
Mixing speed (rpm) | – | 4 – 12 | 4 – 12
Empty machine weight (Kg) | 750 | 1600 | 2600
Full-load machine weight (Kg) | 1250 | 2600 | 4600

Specifications

• Product: HERCULES lifting columns (mini, midi, maxi; Mix version available).
• Applications: handling drums, containers, IBCs/Bins; lifting and blending small machines (pneumatic conveyors, mills, calibrators).
• Safety system: certified Blocstop™ to stop the lifting arm in case of failure.
• Optional safety/controls: load cell weighing system to prevent overload.
• Drive and power: 400 V – 50 Hz – 3 phase AC across models.
• Lifting motor power: mini 1.5 kW; midi 3 kW; maxi 4 kW.
• Mixing power (where applicable): midi 5.5 kW; maxi 11 kW.
• Arm rotation power: mini 0.55 kW; midi 0.75 kW; maxi 1.5 kW.
• Column body rotation power: mini 0.18 kW; midi 0.18 kW; maxi 0.12 kW.
• Mixing speed (rpm): midi and maxi 4–12 rpm.
• Weights: empty / full (Kg) – mini 750 / 1250; midi 1600 / 2600; maxi 2600 / 4600.
• Dimensions (A x B x C mm): see machine dimensions table; C optional 300–700 mm.
• Options: Aries system for drum inversion; Trigon system for IBC/Bin blending; manual or automatic column rotation.
