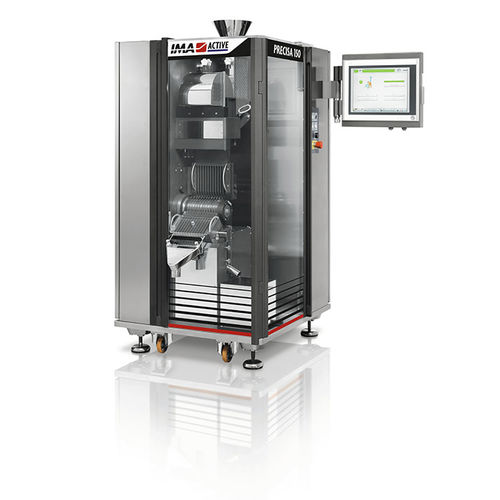

Automatic checkweigher PRECISA series

high-speedfor pharmaceutical applicationsfor capsules

Product overview
PRECISA is a dedicated checkweigher engineered for 100% weight control and selection of pharmaceutical products packed in hard gelatine and HPMC capsules. The machine features a compact footprint with optional wheel attachment for mobility and is designed to combine high throughput with reliable weighing performance and vibration-minimised product transfer. Out-of-weight items are automatically rejected into a dedicated container to maintain product quality and line efficiency.

Highlights

• Space-efficient mobility: compact design with wheel attachment for easy movement and reduced footprint.
• Comprehensive reporting: batch reports including 100% weight-checking for traceability and quality control.
• Fast changeover: quick size changeover to reduce downtime and increase production flexibility.
• Efficient feeding: automatic unclogging of feeding channels for continuous operation.
• Secure rejection: failsafe rejection system for reliable removal of faulty capsules.
• Flexible integration: suitable for in-line connection with all capsule fillers on the market.

Tailored feeding (PRECISA 12)
The PRECISA 12 version is specifically configured for tablets. It uses a vibrating plate to feed tablets through the channels onto a continuous-motion drum, allowing reliable transfer to the weighing cells. PRECISA 12 supports high tablet/capsule throughput while maintaining the series' weighing and rejection reliability.

Machine versions

• PRECISA 12 — tablet feeding version (vibrating plate to continuous-motion drum).
• PRECISA 70 — standard checkweigher version.
• PRECISA 150 — higher-capacity version.
• PRECISA 230 — top-capacity version.

Technical data (table)
Model | PRECISA 70 | PRECISA 150 | PRECISA 230
Maximum output (units/hour) | 70,000 | 150,000 | 230,000
Weight (kg) | 730 | 750 | 770
Weighing range (mg) | | 1 – 2,000 |
Scale accuracy – Standard Deviation (mg) | | 1 |
Feeding hopper capacity (l) | 15 | 20 | 25
Product | 000-5, Supro A-E, DB, DB.AA — vegetable capsules supported


Technical specifications

• Series name: PRECISA
• Versions: PRECISA 12, PRECISA 70, PRECISA 150, PRECISA 230
• Maximum output: up to 230,000 units/hour depending on model
• Weighing range (example): 1 – 2,000 mg (on applicable models)
• Scale accuracy (std. dev.): 1 mg (on applicable models)
• Feeding hopper capacity: 15 l (PRECISA 70), 20 l (PRECISA 150), 25 l (PRECISA 230)
• Product compatibility: hard gelatine and HPMC capsules (000–5, Supro A–E, DB, DB.AA); vegetable capsules supported
• Tablet option: PRECISA 12 uses vibrating-plate feeding to a continuous-motion drum for tablet transfer
• Compact footprint with optional wheel attachment for mobility
• Automatic unclogging of feeding channels and failsafe rejection system
• Designed for in-line integration with capsule fillers and standard packaging lines
