Film coating system EFFECTA

for the pharmaceutical industryfor the food industryfor production

Overview
EFFECTA is a perforated coating pan designed for tablet film coating and sugar coating in pharmaceutical and nutraceutical production. The machine features a functionally shaped perforated drum and purpose-designed baffles to ensure thorough mixing of cores and even distribution of coating dispersion throughout the process.

Highlights

• Flexible spray system: Switchable spray guns compatible with both film and sugar coating processes.
• Efficient drying: Outlet air duct positioned and dimensioned for optimal core drying and energy efficiency.
• Space-saving layout: Dosing unit integrated into the machine frame to reduce footprint in the production area.
• Accessible inspection: Side doors provide safe, fast access and full visibility of the process.
• Wall-through installation: Option for through-the-wall installation to optimise factory layout.
• Operator interface: MAX corporate HMI to support operator efficiency, responsiveness and process predictability.

Optimised coating process
EFFECTA ensures controlled coating application through an advanced spray system delivering fine atomisation for consistent core finishing. Switchable spray guns enable rapid changeover between film and sugar coating, while the integrated dosing unit (peristaltic and volumetric options) provides accurate dispersion dosing and saves production space.

Media and inspection features

• Machine video trailer available showing the coating pan in operation.

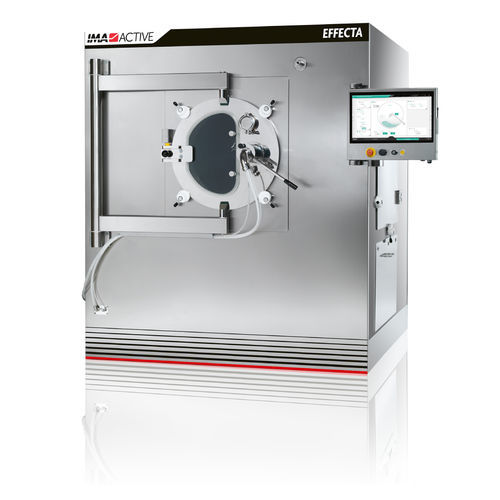

• Gallery images available showing general machine views, spray gun support arm, drum and outlet air duct.

EFFECTA technical data
Model | 70 | 200 (120) | 200 | 500 (360) | 500 | 750
Minimum/maximum pan capacity (litres) | 18-70 | 30-120 | 60-250 | 90-360 | 140-550 | 180-750
Pan diameter (mm) | 985 | 1,200 | 1,346 | 1,516 | 1,716 | 1,746
Pan mouth diameter (mm) | 474 | 600 | 600 | 600 | 600 | 670
Pan motor power (kW) | 1.5 | 4 | 4 | 5.5 | 4 | 7.5
Process air delivery (m³/h) | 1,100 | 2,500 | 4,000 | 4,000 | 6,000 | 8,000

Technical specifications

• Model name: EFFECTA
• Application: Tablet film coating and sugar coating (pharmaceutical and nutraceutical industries)
• Pan capacities: 18–70 L up to 180–750 L depending on model
• Pan diameters: 985 mm up to 1,746 mm (model dependent)
• Pan mouth diameters: 474 mm up to 670 mm (model dependent)
• Pan motor power: 1.5 kW up to 7.5 kW (model dependent)
• Process air delivery: 1,100 m³/h up to 8,000 m³/h (model dependent)
• Spray system: Switchable spray guns for both film and sugar coating; fine atomisation for uniform finishing
• Dosing unit: Integrated in the machine frame; supports peristaltic and volumetric dosing systems
• Drying: Strategically positioned outlet air duct for effective core drying and energy savings
• Inspection & access: Side doors for safe inspection and full process visibility
• Installation: Through-the-wall installation possible to reduce production footprint
• HMI: MAX corporate HMI for operator support and improved predictability
• Production plant / Brand: IMA Active (IMA S.p.A. – Active Division)
