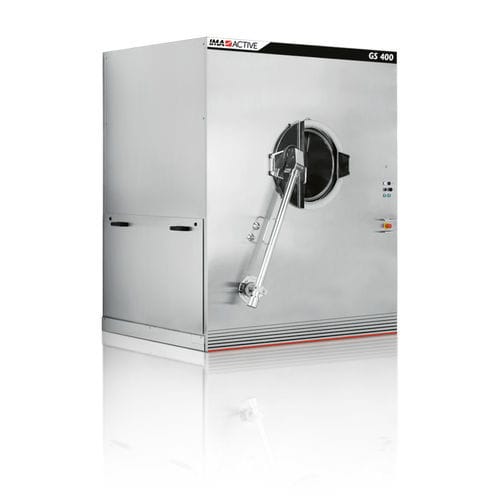

Laboratory coating system GS series

for the pharmaceutical industryfor research and developmentfor production

Overview
The GS coating pan is a versatile tablet and pellet coater engineered for pharmaceutical and related industries. Featuring a solid-wall pan design and optional interchangeable drums, GS machines accommodate laboratory R&D and full-scale production. The system supports tablet film coating, sugar coating and processing of pellets and microgranules, with configurations for exhausting and/or blowing paddles to match process requirements.

Highlights

• Perfect mixing: Pan geometry and smooth surface ensure homogeneous mixing and uniform distribution of coating materials.
• Efficient drying: Patented drying system optimises drying performance, process stability and energy use.
• Enhanced flexibility: Multiple paddle sizes and drum options adapt to a wide range of product sizes and production rates.
• Easy loading: Automatic product loading and discharge reduce handling time and streamline operations.

Smart cleaning
Cleaning is simplified by the solid-wall pan design. Programmable cleaning cycles (washing, rinsing, discharge) can be created per product and stored in recipes to reduce downtime and ensure repeatable hygiene procedures.

Machine versions
Production GS models scale from GS 25 to GS 700 to cover nominal capacities up to 700 L. Laboratory MYLAB systems use the same core technology with interchangeable drums (fully perforated or solid wall) for process development and easy scale-up. Typical lab drum batches: 1.5–6 L; optional smaller drum: 0.5–2 L.

GS technical data (table)
Model: GS 25; GS 70; GS 150; GS 300; GS 400; GS 450; GS 600; GS 700
Minimum/maximum capacity (L): 13-25; 40-70; 70-150; 150-300; 200-400; 225-450; 350-600; 350-700
Pan diameter (mm): 800; 1,050; 1,280; 1,580; 1,630; 1,700; 2,000; 2,050
Pan mouth diameter (mm): 300; 400; 450; 520; 520; 520; 730; 730
Pan motor power (kW): 0.37; 1.1; 1.5; 3; 4; 4; 5.5; 5.5
Process air delivery (m³/h): 350; 1,000; 1,400; 2,500; 3,000; 3,000; 4,000; 4,000

Technical specifications

• Models available: GS series (GS 25, GS 70, GS 150, GS 300, GS 400, GS 450, GS 600, GS 700).
• Capacity range: laboratory batches (0.5–6 L options) to production capacities up to 700 L nominal.
• Solid-wall pan design delivers consistent results across product shapes; laboratory versions offer interchangeable drums (solid or fully perforated).
• Exhausting and/or blowing paddles support tablet film coating, sugar coating, pellets and microgranules; multiple paddle sizes for process adaptability.
• Patented drying system improves process stability and energy efficiency.
• Automatic product loading and discharge with programmable, storable cleaning cycles.
• Pan motor power and process air delivery scale with model to meet throughput requirements (see technical data above).
