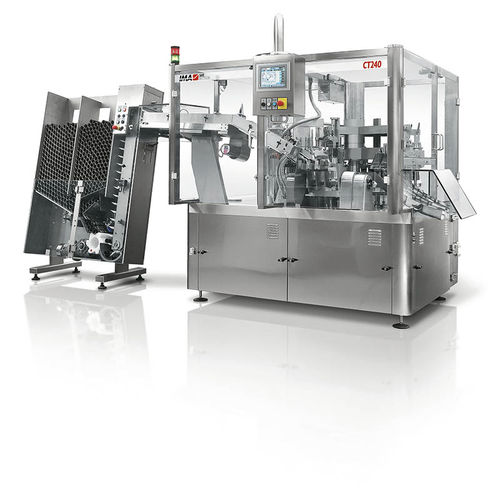

Automatic filling machine CT240

fully-automaticrobotizedservo-driven

Overview
CT240 is an automatic tube filler engineered for high productivity and flexible production layouts. It integrates a triple-nozzle dosing system for high-speed filling and can be supplied with robotic unloading for fully automated lines. The machine is designed for fast changeovers and supports multiple tube formats and feeding options.

Design & performance
Triple-nozzle configuration increases throughput while maintaining precise dosing. Comadis changeover method allows quick format swaps. Optional robotized tube feeders enable unattended loading and unloading. The construction prioritises accessibility for maintenance and straightforward operation.

Main functional features

• Choice of automatic or robotized tube feeders
• Triple-nozzle dosing for faster performance
• Easy-to-disassemble dosing pump for maintenance
• Servo-controlled diving nozzle with positive shut-off valve and air-blow cleaning
• Adjustable stroke triple diving nozzle (servo-controlled)
• Quick interchangeability of closing heads
• Tool-free change of size parts for simplified and rapid format changes
• Customised “designer seals” available on request
• Triple tube rejection station
• Electrical cabinet integrated within machine footprint
• Batch data collection via USB pen drive (USB port)

Performance highlights

• High real output enabled by the triple-nozzle configuration
• High performance combined with flexibility and easy changeovers
• Robust base focused on simplicity of use and maintenance

Technical data (table)
CT240 TECHNICAL DATA
Mechanical speed: Up to 240 tubes/min.
Filling volume: 2-250 ml
Tube diameter: 10-50 mm
Tube length: 60-250 mm
Working stations: 15

Technical specifications

• Mechanical speed: Up to 240 tubes/min.
• Filling volume range: 2–250 ml
• Acceptable tube diameter: 10–50 mm
• Acceptable tube length: 60–250 mm
• Working stations: 15
• Triple-nozzle dosing system
• Servo-controlled diving nozzle with positive shut-off and air-blow cleaning
• Easy-to-disassemble dosing pump
• Automatic or robotized tube feeders available
• Integrated electrical cabinet within machine footprint
• Batch data collection via USB
