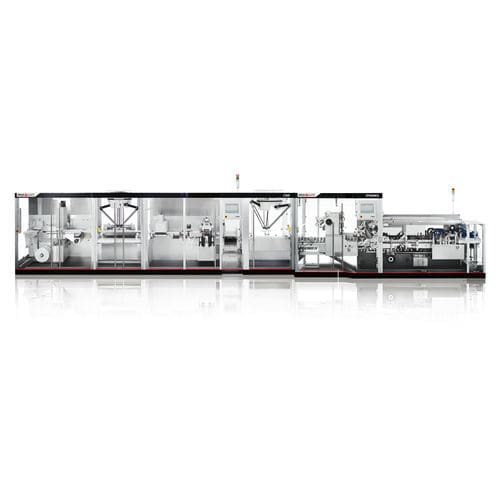

Automated thermoformer C360

in-linemodularautomatic

Overview
C360 is the most compact deep-draw thermoforming machine in its range, engineered for pharmaceutical packaging with high customization to meet specific production lines. IMA Safe technology and integrated robotic systems are applied to the feeding area and the cartoner interface to ensure flexible, automated handling of diverse products and trays.

Machine highlights

• Maximum product and tray variety: Designed to process a wide range of product shapes and tray types, including mixed-product loading in the same tray.
• High-performance feeders: Feeders deliver reliable, high-rate feeding for ampoules and syringes.
• Flexible modularity: C360 can be integrated with multiple cartoner series (X, Flexa, Dynamica) to match line layout and throughput requirements.
• Quick size changeover: Reduced number of size parts enables rapid and simple format changeovers.
• Compact footprint: Smallest footprint in its class, suitable for constrained production spaces.
• GMP compliance: Designed and configurable to meet pharmaceutical GMP requirements for packaging equipment.

Robotic systems
Robotic feeders enable packing of a wide range of products, including different products in the same tray. Robotic solutions at the cartoner interface provide maximum layout flexibility and precise, automated product transfer.

Track & Trace
The integrated cartoner module supports camera and ink-jet systems for serialization and coding, enabling a shorter, more efficient line for cartoning and traceability.

Tables (technical summary)
Technical Data table rows:
Model | C260 | C360
Production output | up to 800 1-2 ml DIN ampoules/min; up to 400 1 ml syringes/min | 600-1000 1-2 ml DIN ampoules/min; up to 600 1 ml DIN syringes/min
Forming depth | 3 mm – 40 mm | 3 mm – 40 mm

Cartoners table rows:
X Series | up to 120 cartons/min.*
Flexa Series | up to 150 cartons/min.*
Dynamica Series | up to 250 cartons/min.*

Notes
The machine integrates IMA Safe technology and robotic solutions for feeding and cartoner connection. It is designed for pharmaceutical GMP compliance and offers high flexibility in product-to-tray combinations.

Technical specifications

• Model name: C360
• Technology: Deep-draw thermoforming
• Customization: High (IMA Safe robotics for feeding and cartoner connection)
• Production output (indicative): 600–1000 ampoules/min (1–2 ml DIN); up to 600 1 ml DIN syringes/min
• Forming depth: 3 mm – 40 mm
• Compatibility: Works with a large variety of product shapes and tray types
• Feeding: High-performance feeders; optional robotic feeders for mixed-product trays
• Integration: Flexible integration with cartoners (X, Flexa, Dynamica series)
• Cartoner speeds (indicative): X Series up to 120 c/min; Flexa up to 150 c/min; Dynamica up to 250 c/min
• Track & Trace: Integrated module for camera and ink-jet systems for serialization
• Footprint: Most compact in its range
• Compliance: Fully GMP compliant for pharmaceutical packaging
