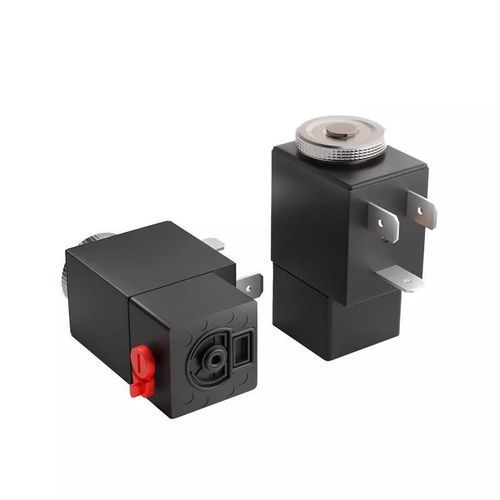

22mm INTERSOL is a compact valve family designed for gases and compatible liquids, featuring manifold mounting and side-located ports for simplified system integration. It is built for very high cycle rates and extended operational life.

Key features

• 2/2 and 3/2 valve configurations with manifold mounting
• Compact 22 mm footprint
• All ports on the same side for easy integration
• Long life: > 25 million cycles
• High speed: up to 2,000 cycles per minute
• Orifice sizes available up to 1.8 mm

Available variants

• 09-211I-01830+AQF — Orifice size: 1.8 mm; Kv: 1 l/min; Pressure (max): 8 Bar; Valve Function: 2/2NC
• 09-211I-02-30+AQF — Orifice size: 1.2 mm; Kv: 0.6 l/min; Pressure (max): 15 Bar; Valve Function: 2/2NC
• 09-211I-03-30+AQF — Orifice size: 1.6 mm; Kv: 0.8 l/min; Pressure (max): 10 Bar; Valve Function: 2/2NC
• 09-221I-01830+AQF — Orifice size: 1.8 mm; Kv: 0.75 l/min; Pressure (max): 12 Bar; Valve Function: 2/2NO
• 09-311I-01430+AQF — Orifice size: 1.4 mm; Kv: 0.7 l/min; Pressure (max): 12 Bar; Valve Function: 3/2NC
• 09-311I-01830+AQF — Orifice size: 1.8 mm; Kv: 1 l/min; Pressure (max): 8 Bar; Valve Function: 3/2NC
• 09-311I-02-30+AQF — Orifice size: 1.2 mm; Kv: 0.6 l/min; Pressure (max): 15 Bar; Valve Function: 3/2NC
• 09-311I-03-30+AQF — Orifice size: 1.6 mm; Kv: 0.8 l/min; Pressure (max): 10 Bar; Valve Function: 3/2NC
• 09-321I-01430+AQF — Orifice size: 1.4 mm; Kv: 0.75 l/min; Pressure (max): 7 Bar; Valve Function: 3/2NO
• 09-321I-01830+AQF — Orifice size: 1.8 mm; Kv: 0.85 l/min; Pressure (max): 6 Bar; Valve Function: 3/2NO

Technical specifications

• Footprint: 22 mm
• Media: Air, neutral gases and compatible liquids
• Operation: Direct-acting 2-way and 3-way valves; normally closed and normally open options; universal with manual override
• Operating pressure: 0 to 15 bar
• Life cycle: > 25 million cycles
• Response time: 8 to 15 ms (measured according to ISO 12238)
• Power consumption: 3.8 W
• Mounting option: Flange mount (manifold)
• Application areas: Analytical; Biosciences
• Orifice sizes available (examples): 1.2 mm, 1.4 mm, 1.6 mm, 1.8 mm
