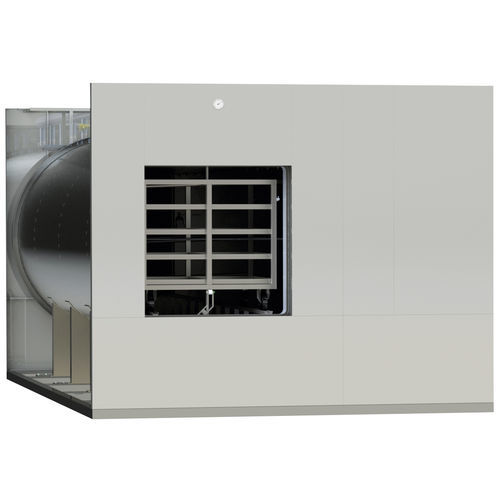

superheated water sterilizer / medical / for the pharmaceutical industry / floor-standing
LPS Models

{{requestButtons}}

Characteristics

  • Application domain:

    medical, for the pharmaceutical industry

  • Sterilization procedure:

    superheated water

  • Configuration:

    floor-standing, front-loading, pass-through

  • Other characteristics:

    high-capacity, stainless steel, custom-made

  • Capacity:

    Min.: 1,000 l (264.2 gal)

    Max.: 31,500 l (8,321.4 gal)

Description

Inoxtorres design and manufacture
Superheated Water Sterilizers for the
sterilization of any liquid placed into
closed containers (bottles, IV bags, etc.)

Description:

The superheated water sterilization equipment are cylindrical type,
with rectangular doors in order to be adapted to the trolleys. The
doors can be automatically opened or closed from the SCADA.

The optimised water recirculation system works thanks to an
efficient centrifugal water pump and a main heat exchanger (for
heating and cooling the load). A special plenum is installed
inside the chamber in order to allow a perfect water distribution
to the product, ensuring an excellent temperature uniformity.

Our standard designs go from a 1.000l up to 32.000l (useful
volume), but the dimensions and design can be adjusted
according final user needs.
