medical sterilizer / laboratory / for the pharmaceutical industry / steam
PSS Models

{{requestButtons}}

Characteristics

  • Application domain:

    medical, laboratory, for the pharmaceutical industry

  • Sterilization procedure:

    steam

  • Configuration:

    floor-standing, horizontal

  • Other characteristics:

    high-capacity, stainless steel, custom-made

  • Capacity:

    Max.: 8,960 l (2,367 gal)

    Min.: 288 l (76.1 gal)

Description

Inoxtorres design and manufacture Saturated
Pure Steam Sterilizers for the sterilization of
solid, porous or liquid loads, for medical and
pharmaceutical companies.

Description:

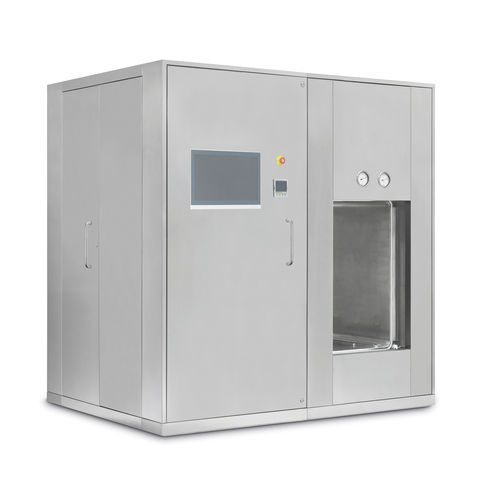

The saturated pure steam sterilizer equipment PSS are
rectangular type, with rectangular doors in order to be adapted to
the trolleys. The doors can be automatically opened or closed
directly from the control system, where all the chamber actions
are handled (Alarms, Recipes, Graphics, Users, Synoptics, etc).

In the technical area, a very efficient liquid ring pump is installed to
do the vacuum inside the chamber, in order to pull the air to replace
it by saturated steam, and takes also advantage to eliminate the
accumulated condensates in real time leading to an excellent
temperature uniformity. In that technical zone are installed all the
components required for the equipment operations.

The equipment are manufactured in high quality stainless
steel, using welding methods like TIG or orbital type.
Regarding qualification aspects, the chambers are tested and
validated according stringent protocols.

Our standard designs go from a 288l and up to 8.960l, but the
dimensions and design can be adjusted according final user needs.
