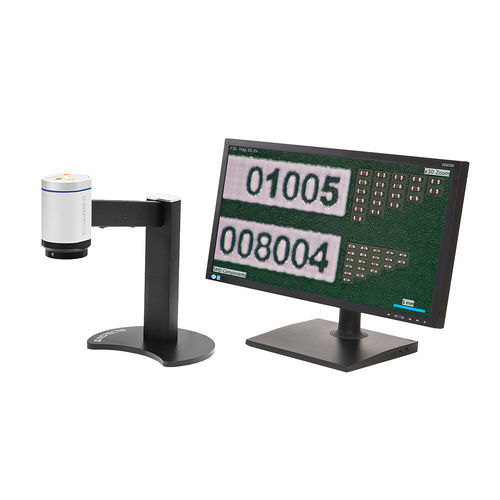

Digital video microscope F40

inspectionbenchtopLED

Overview
The F40 Inspectis is an all‑in‑one Full HD (FHD) digital inspection microscope designed for ergonomic bench use. It integrates a 40× motorised zoom lens, auto focus, adjustable LED illumination and an integrated stand for stable inspection workflows. The 228 mm working distance reduces operator strain and improves repeatability in industrial inspection tasks.

Key features

• Full HD 1080p live video at 60 fps with high detail and accurate colour reproduction
• Motorised high‑resolution zoom (40× range) with pre‑calibrated optics, auto‑focus and iris control
• Built‑in LED matrix illumination with adjustable incident angle for reflection‑free lighting; optional LED RingLight available
• Durable all‑aluminium housing with integrated stand/base for stable positioning
• On‑board controls for zoom, iris, auto focus on/off, white balance and brightness
• Optional remote control console with extended functions and foot‑switch support
• Plug & Play: direct HDMI output to FHD displays or USB3.0 converter for PC connection
• Standalone capture: stills and FHD video recorded directly to USB flash memory without a host computer

Included items (HD-114 kit)

• Inspectis F40, FHD 1080p digital inspection microscope, 40× motorised zoom, All‑in‑One
• Power supply, HDMI cable and instruction manual

Optional accessories (examples)

• Macro Lens +1 Diopter, 67 mm (Item no. HD-036) — close‑up lens attachable to standard lens to increase magnification (~+23%)
• RingLight UV LED with protection glass (Item no. HD-025-B) — flicker‑free 365 nm UV LED ring light with brightness control; use with UV‑protection glasses
• Tilt Board (Item no. HD-029) — tilt platform for smooth positioning up to 30° in all directions; antistatic high‑friction surface with fixture slots

Digital control & advanced features
All camera and lens parameters (zoom, aperture, brightness, focus, colour levels) are adjustable via on‑board buttons. With the optional Advanced Remote Control console you gain zoom factor display, crosshair overlay, image rotate/freeze, memory save/recall (2 presets), Picture/Quality modes and more. Selected functions can be assigned to a foot pedal for hands‑free operation.

Capture & outputs
Live loop‑through HDMI output (FHD 1080p/60 fps, switchable to 50p). Direct recording to USB flash memory and still capture at 1920×1080. I/O: HDMI video output, 5‑pin MiniDin power input and 8‑pin MiniDin PC communication port.

Downloads & documentation
Manufacturer PDF datasheets, product diagrams and accessory documentation are available for download.

Specifications

• Video output: FHD 1080p/60 fps (switchable to 1080/50p). HDMI type A connector
• Imager: 3.2 MP, 1920×1080 progressive scan
• Lens: High‑resolution motorised zoom (30:1) with auto‑focus, iris control and pre‑calibrated optics
• Illumination: Built‑in LED matrix light; optional LED RingLight
• I/O ports: HDMI video output; 5P MiniDin power input; 8P MiniDin PC communication
• On‑board control: Zoom, Iris, Auto Focus on/off, White Balance, Brightness
• Remote control (optional): Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture/Quality Mode, Crosshair overlay, Image Rotate/Freeze, Memory Save/Recall (2), Foot‑switch support
• Software control (optional): Zoom, Iris, Shutter speed, Brightness (manual/auto), Focus (manual/auto), Contrast, White Balance, Clarity, NIR mode, Flip H/V
• Storage environment: -20° to +65°C, 20–95% RH non‑condensing
• Operating environment: -5° to +45°C, 20–95% RH non‑condensing
• Size / Weight: 395 × 240 × 360 mm including metal base; approx. 5.1 kg
