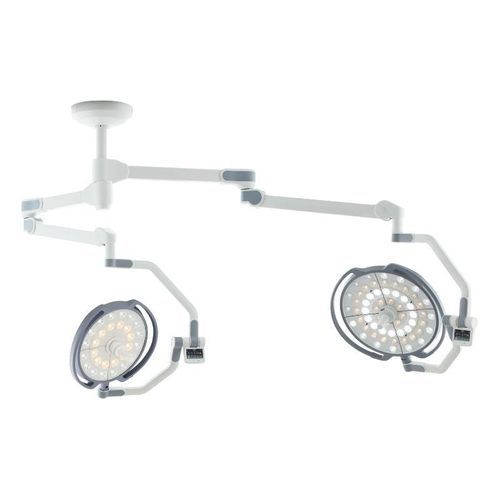

Ceiling-mounted surgical light LD10.02S

LED2-arm220V / 50Hz

The Dual-Head Surgical Light LD10.02S by INSPITAL is a ceiling-mounted LED surgical luminaire designed to provide uniform, shadow-free illumination for medium-sized and high-precision surgical procedures. It integrates advanced LED technology, an intuitive 4.3" touchscreen on each head and adaptive illumination systems to ensure consistent light intensity and accurate color rendering in the operating room.

Features

• Double-head configuration for flexible shadow reduction and optimized coverage.
• Advanced LED modules with Active Illumination Control (AIC) that compensates in real time for occluded LEDs.
• Auto‑Light function (PID control) maintains central light intensity regardless of height, angle or obstructions.
• 4.3" LCD touchscreen on each light head for easy adjustment of intensity, color temperature and focus.
• Multi-function handle controls (focus, intensity, color temperature, zoom) configurable via the touchscreen.
• Laser positioning guide on each head for precise alignment of the illumination center.
• Optional wireless synchronization (Wi‑Fi) between heads for unified settings.
• Optional wall control panel to access and control functions from the OR wall.
• Hygienic design and easy-to-clean components; stainless-steel elements where applicable.

Characteristics / Specifications (technical)

• Model: LD10.02S
• Light Head Diameter with External Handle — Main: Ø670 mm; Satellite: Ø490 mm
• Illuminance at 1 m — Main: 160,000 Lux; Satellite: 120,000 Lux
• Color Temperature (adjustable) — Main: 3000 K–5000 K; Satellite: 3000 K–5000 K
• Color Rendering Index Ra (CRI) — Main: 96 %; Satellite: 96 %
• Dimming Range (adjustable) — Main: 1–100 %; Satellite: 1–100 %
• Light Field Diameter d10 — Main: 24–36 cm (9.5"–14.2"); Satellite: 25–27 cm (9.45"–10.63")
• Light Field Diameter d50 — Main: 13–28 cm (5.1"–11"); Satellite: 12–14 cm (4.7"–5.5")
• Number of LED Modules — Main: 60; Satellite: 28
• LED Lifespan — Main: > 60,000 h; Satellite: > 60,000 h
• Protection Class (IP) — Main: IP43; Satellite: IP43
• Total Power Consumption (max.) — Main: 130 W; Satellite: 55 W
• Turbulence Degree (standard value max. 37.5 %) — Main: 29 %; Satellite: 25 %
• Radiant Power at Nominal Illuminance — Main: 510 W/m²; Satellite: 430 W/m²
• UV Radiation Intensity — Main: 0.2 W/m²; Satellite: 0.2 W/m²
• Light Volume Depth L1 + L2 at 20 % — Main: 130 cm (51.2"); Satellite: 185 cm (72.8")
• Light Volume Depth L1 + L2 at 60 % — Main: 76 cm (30"); Satellite: 92 cm (36.2")
• Input Voltage — Main: 220–240 V~ / 50–60 Hz; Satellite: 220–240 V~ / 50–60 Hz
• Light Head Weight — Main: 13.2 kg; Satellite: 9 kg
• Additional Options — Wall Control Panel, UPS, Camera
• Number of Light Heads — Main: 1; Satellite: 1 (dual-head configuration)
