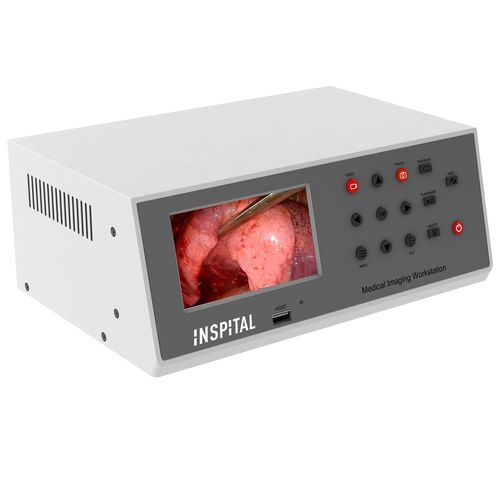

Observation digital video recorder LD30.00

medicaloperating roomfor endoscopy

Product overview

The Medical Imaging Recorder LD30.00 is a compact medical imaging workstation engineered for recording and visualization in clinical environments. It provides automatic video input detection and is designed for quick setup and straightforward operation, suitable for operating rooms, endoscopy suites and examination rooms.

Key features

• Dedicated medical imaging recorder/workstation for hospitals and clinics
• Automatic detection of video connections for fast setup
• Compact footprint enabling integration in operating and examination rooms

Technical specifications

• Display: 4.3-inch LCD
• Input Voltage: DC 12V 3A
• Hard Drive Capacity: 500 GB
• Recording Time (High Quality): 75 Hours
• Recording Time (Medium Quality): 115 Hours
• Recording Time (Low Quality): 275 Hours
• Video Foot Pedal Connection: 3.5 mm Stereo Jack x 1
• Photo Foot Pedal Connection: 3.5 mm Stereo Jack x 1
• IR Receiver Cable Connection: 3.5 mm Stereo Jack x 1
• Read HDD Connection: Mini USB x 1
• PC Connection: USB 3.0 x 1
• Expansion Connection: RS232 x 1
• Power Supply Connection: DC Power Supply x 1
• Dimensions: 262(L) x 172(W) x 120(H) mm
