Monitoring ECG electrode PX01

chest

Product Overview

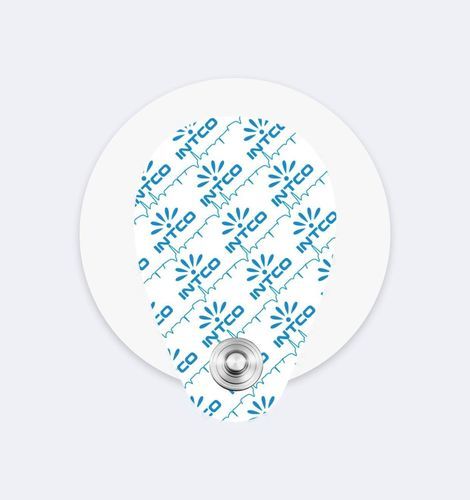

Wet conductive hydrogel electrode with an offset connector and a dual adhesive system (instant + long-term) to ensure consistent skin contact and reliable ECG signal during monitoring.

Application scenarios

• Exercise stress testing
• Emergency and urgent care monitoring

Product Features

• Wet Conductive Hydrogel: Ensures low-impedance interface for stable signal acquisition.
• Offset Connector: Facilitates lead routing and reduces cable tension at the electrode site.
• Dual Adhesive System: Immediate adhesion for placement and extended adhesion to maintain contact over prolonged monitoring.

Product Model Details

• Model name: PX01
• Case dimension: 48 × 36 × 28 cm
• Packing: 50 per pack, 40 packs per case
• Electrode description: Adult size, wet gel, 53 × 60 mm

Certification
Certification icons are shown on the product page to indicate applicable regulatory compliance and certifications.

Additional Information

• Connector type: Offset connector
• Adhesive: Combination of instant and long-term adhesives for stable contact during monitoring
• Compatibility: Compatible with most standard ECG monitors and monitoring systems using offset leads
• Materials: Conductive hydrogel, medical-grade adhesive, foam/non-woven backing and biocompatible materials for patient comfort

Specifications

• Brand: INTCO Medical
• Model: PX01
• Intended use: Diagnostic/monitoring ECG electrode for adults (stress test, emergency)
• Electrode size: 53 × 60 mm
• Gel type: Wet conductive hydrogel
• Connector: Offset connector
• Adhesive: Instant + long-term adhesive combination
• Packing configuration: 50 per pack, 40 packs per case
• Case dimension: 48 × 36 × 28 cm
