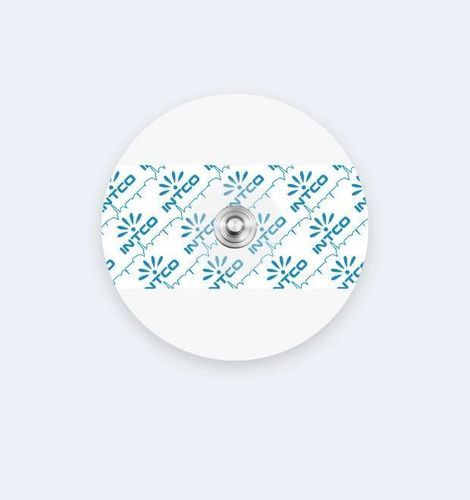

Pad ECG electrode SN series

with tabpediatricmonitoring

Overview
Disposable foam-backed ECG monitoring electrodes designed for clinical and emergency use. Solid conductive gel and medical-grade adhesive provide consistent skin contact for reliable ECG signal acquisition across neonatal, pediatric and adult patients.

Application scenarios

• Intensive Care Unit (ICU) and Coronary Care Unit (CCU)
• Emergency and pre-hospital care
• Long-term and step-down monitoring

Product Features

• Comfort and conformability: Soft, flexible foam backing conforms to body contours to reduce pressure points during extended monitoring.
• Secure adhesion: High-tack medical adhesive resists edge lifting and maintains electrode position during patient movement and perspiration.
• Signal quality: Solid conductive gel interface ensures low impedance contact, minimizing motion artifacts and providing stable ECG traces.
• Moisture resistance: Foam backing and adhesive combination improve adhesion on diaphoretic (sweaty) skin for uninterrupted monitoring.
• Biocompatible materials: Manufactured from medical-grade, low-irritation materials suitable for sensitive skin.
• System compatibility: Compatible with standard ECG lead wires, snap connectors, and monitoring systems.

Certification
Relevant certification marks and approvals are indicated on the product page (icons shown). Specific certificate names are listed in product documentation where applicable.

Product Models

• SN01
  Case Dimension: 36X35X25cm
  Packing: 50/pk, 40pk/cs
  Description: Child, Solid Gel, Oval, 35 x 44 mm
• SN05
  Case Dimension: 36X35X25cm
  Packing: 50/pk, 40pk/cs
  Description: Adult, Solid Gel, Tear drop, 42 x 49 mm
• SN07
  Case Dimension: 36X35X25cm
  Packing: 50/pk, 40pk/cs
  Description: Neonatal, Solid Gel, Round, Ø 25 mm
• SN03
  Case Dimension: 45X32X25cm
  Packing: 50/pk, 40pk/cs
  Description: Adult, Solid Gel, Round with tab, 49 x 53 mm
• SN08
  Case Dimension: 45X32X25cm
  Packing: 50/pk, 40pk/cs
  Description: Adult, Solid Gel, Round, Ø 50 mm
• SN22
  Case Dimension: 36X35X25cm
  Packing: 50/pk, 40pk/cs
  Description: Universal, Solid Gel, Rectangle, 35 x 40 mm

FAQ (selected)

• Are foam ECG electrodes suitable for long-term monitoring? — Yes. The foam backing and medical adhesive are designed for extended wear with maintained adhesion and patient comfort.
• Do foam monitoring electrodes provide reliable signal quality? — Yes. Conductive solid gel and optimized electrode construction reduce motion artifacts and improve signal stability.
• Are the foam electrodes skin-friendly? — Yes. Materials are medical-grade and low-irritation to minimize skin reactions.
• Are the electrodes compatible with standard ECG systems? — Yes. They work with common snap connectors, lead wires and monitoring devices.
• Can these electrodes be used across patient groups? — Yes. Multiple sizes and shapes cover neonatal, pediatric and adult clinical needs.

Characteristics / Technical specifications

• Backing: Soft, flexible foam (typical thickness 1.0 mm) designed to conform to body contours.
• Adhesive: High-tack medical-grade, pressure-sensitive adhesive suitable for EMS and long-term monitoring; resists edge lifting.
• Conductive interface: Solid gel pad for improved contact and reduced motion artifacts (typical gel thickness 1.0 mm).
• Moisture resistance: Foam and adhesive formulated to improve adhesion on diaphoretic skin.
• Biocompatibility: Medical-grade, low-irritation materials intended for clinical use.
• Compatibility: Compatible with standard ECG cables, snap connectors and monitoring systems.
• Available sizes/configurations: Models SN01, SN03, SN05, SN07, SN08, SN22 covering neonatal, pediatric, adult and universal shapes with specified pad dimensions.
• Packing: Standard packing 50 per pack, 40 packs per case (50/pk, 40pk/cs) unless otherwise specified.
