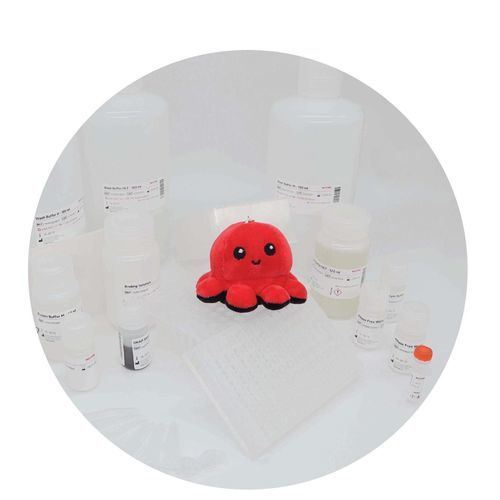

Solution reagent kit InviMag® Universal Kit/ KF96

for DNA extractionfor RNA extractiondiagnostic

Product overview
The InviMag® Universal Kit/ KF96 enables automated purification of viral DNA/RNA, bacterial DNA and genomic DNA using magnetic beads on the KingFisher™ Flex instrument. Protocols are optimised for a wide range of clinical sample types. The kit supports high-throughput processing in a 96‑well format with sample input up to 200 µl.

Highlights

• Single kit for multiple diagnostic targets: viral DNA/RNA, bacterial DNA and genomic DNA
• Flexible sample compatibility: serum, plasma, swabs, blood, urine, stool supernatant, cultured bacteria, respiratory specimens, cell culture supernatants
• High throughput: automated processing of up to 96 samples per run on KingFisher™ Flex
• CE‑IVD certified for in vitro diagnostic use

Product Details
Downstream applications: qPCR, NGS, hybridization assays and HLA typing.
Target nucleic acids: viral DNA & RNA, bacterial DNA, genomic DNA.
Maximum starting material: up to 200 µl.

• Serum, plasma and other cell-free body fluids, urine
• Swabs (dry or stabilized)
• Fresh or frozen blood (EDTA/citrate; not heparinized)
• Supernatant from stool suspensions
• Cultivated bacteria
• Tracheal secretion, BAL, sputum
• Cell culture supernatant

Yield: variable by sample type and storage. Example (whole blood): 3–6 µg for leukocyte count 3 x 10^6 to 1 x 10^7 cells/ml.
Quality: genomic DNA from blood A260:A280 = 1.8–2.1; other sample types depend on source and target.
Preparation time: 40–60 min (including lysis, depending on sample).
Elution volume: 100 µl.
Technology: magnetic beads.
Certification: CE‑IVD (REGULATION (EU) 2017/746).

Ordering details
InviMag® Universal Kit/ KF96 — Package: 5 x 96 purifications — Catalogue No.: 7450300200
InviMag® Universal Kit/ KF96 w/o plastic — Package: 5 x 96 purifications — Catalogue No.: 7450300250

FAQs

• Can different nucleic acid types be purified separately from the same sample? — Co-purification occurs when multiple nucleic acid types are present; viral nucleic acids will be co-purified with genomic nucleic acids.
• Can tissue be used as starting material? — Yes; a supplemental protocol for tissue is available.
• What is the composition of Elution Buffer M? — Elution Buffer M: 10 mM Tris, pH 8.5–9.

Technical specifications

• Instrument compatibility: KingFisher™ Flex
• Format: 96‑well, high throughput
• Maximum sample input volume: 200 µl
• Elution volume: 100 µl
• Processing time: 40–60 minutes (incl. lysis, depending on sample)
• Target nucleic acids: viral DNA & RNA, bacterial DNA, genomic DNA
• Downstream applications: qPCR, NGS, hybridization assays, HLA typing
• Yield example (whole blood): 3–6 µg for leukocyte count 3 x 10^6 to 1 x 10^7 cells/ml
• Quality (genomic DNA from blood): A260:A280 = 1.8–2.1
• Technology: magnetic beads
• Certification: CE‑IVD (REGULATION (EU) 2017/746)
• Available package sizes / catalogue numbers: 5 x 96 purifications — 7450300200; 5 x 96 purifications (without KingFisher™ plastics) — 7450300250
