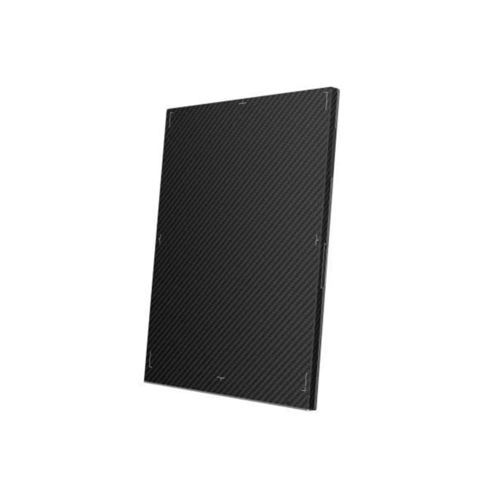

Wireless flat panel detector Mars 1013X

waterproof10 x 13

Product overview
Mars 1013X is a 10×13-inch wireless amorphous silicon (a‑Si) flat panel detector for radiographic imaging in podiatry and other small-field clinical applications. It integrates a 100 μm pixel pitch with direct-deposition CsI scintillator, intelligent low-power automatic exposure detection (iAED), in-tray battery charging and IPX5 ingress protection. The compact, lightweight housing facilitates integration into specialty X‑ray systems.

Key features

• 100 μm pixel pitch with 16-bit ADC for high spatial and contrast detail
• Direct-deposition CsI scintillator delivering strong DQE across frequencies
• Intelligent automatic exposure detection (iAED) with full AED control
• Large-capacity battery with in-tray charging and >8 hours runtime
• Lightweight housing with IPX5 ingress protection suitable for clinical use
• Wireless operation and fast workflow support for efficient exams

Technical specifications

• Model: Mars 1013X
• Detector size: 10×13 inch
• Type: Wireless a‑Si flat panel detector (FPD)
• Pixel pitch: 100 μm
• A/D conversion: 16-bit ADC
• Scintillator: Direct-deposition CsI
• Dynamic quantum efficiency (DQE): High performance across frequencies
• Automatic exposure detection: iAED, full AED control
• Battery: Large capacity, in-tray charging, >8 hours
• Ingress protection: IPX5
• Design notes: Lightweight housing, optimized for podiatry and small-field radiography
