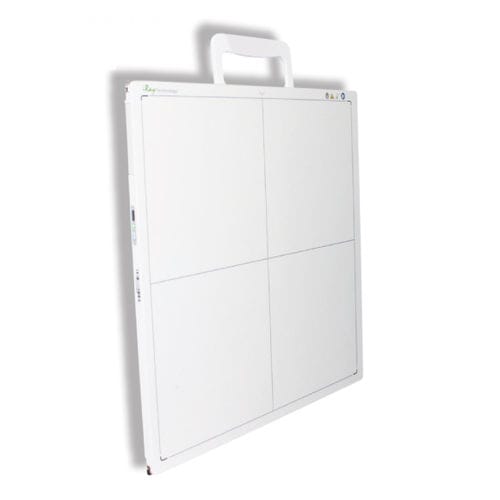

Multipurpose radiography flat panel detector Mars 1717V

portablewireless17 x 17

It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions. Features Wireless cassette detector per ISO 4090, fits in bucky Stable iSync+ Automatic Exposure Detection (AED) 139 μm pixel pitch, with 16 bit ADC for more image details Long battery life and smart workflow Dual band (2.4 and 5 GHz) wireless support with easy sharing Direct deposition CsI for better image quality with lower dose Technical Parameters Detector Technology Amorphous Silicon Scintillator Csl Pixel Pitch (pm) 139 Pixel Matrix 3072x 3072 Spatial Resolution (Ip/mm) 3.4 AD Conversion (bit) 16 Battery Autonomy (h) 8 WIFI 2.4G and 5G, IEEE802.11 a/b/g/n/ac Trigger Mode AED (Optional) 1 Software Full Image Time (s) 5 Dimension (mm3) 460x460x15 Weight (kg) 4.6 Static Loading (kg) 150 kg Uniformly Ingress Protection IPX1 Operating Temperature (°C) 5-35 Storage & Transport Temperature with Package(°C) -20-55 Operating Humidity (% RH) - 10-90 (Non-Condensing) Storage & Transport Humidity with Package (% RH) 5-95 (Non-Condensing)
