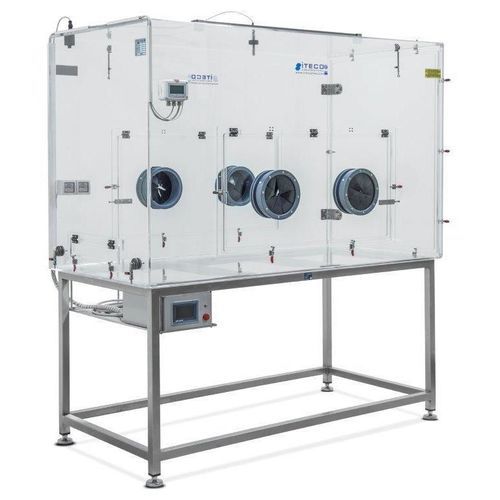

Laboratory glove box HC BOX

for researchfloor-standing

Overview
HC BOX is a humidity-controlled enclosure designed to maintain stable internal humidity at percentile accuracy for laboratory and research applications, with access for instruments and utility connections.

Key features

• Monolithic PMMA structure
• Front and rear hinged doors with clear opening 500 x 1000 mm (L x H); each door fitted with 2 flanges Ø186 mm with iris (diaphragm) passages
• Right side wall with hinged door, clear opening 1070 x 800 mm (L x H)
• Left side wall with instrument passage opening, clear opening approx. 400 x 50 mm (L x H)
• Support with adjustable anti-vibration feet
• Two fluid connections
• Two internal power sockets
• LED lighting on the upper wall
• DR4 model dryer included
• Process instrument for humidity and temperature measurement
• PLC control panel with touchscreen for managing process parameters, alarms and services

Technical specifications

• Material: PMMA (monolithic structure)
• Doors/openings: front & rear hinged doors 500 x 1000 mm; right side door 1070 x 800 mm; left side instrument passage approx. 400 x 50 mm; door flanges Ø186 mm with iris closures
• Connections: 2 fluid connections
• Electrical: 2 internal power sockets
• Lighting: LED on upper wall
• Dryer: DR4 model
• Instrumentation: humidity and temperature measurement instrument
• Control: PLC with touchscreen (process parameters, alarms, services)
• Support: adjustable anti-vibration feet; support dimensions mm 1800 x 850 x 850 (L x P x H)
• Overall dimensions: box mm 1800 x 900 x 1150 (L x P x H)
• Weight: 170 kg
