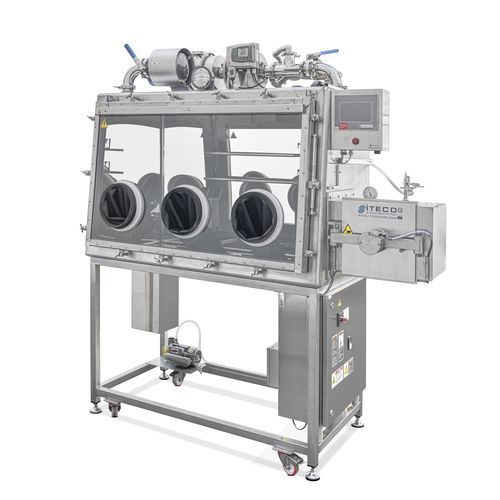

Nuclear medicine glove box SGS4030

for radiopharmacyfor radioisotope preparationsynthesis

Model
GLOVE BOX SGS4030 (ALPHA-TIGHT) for containment of an At-211 radiopharmaceutical synthesis module.

Overview
Glove box engineered for radiation protection and for handling and synthesis of At-211 based radiopharmaceuticals. The left side of the work area includes a well for containment of the dose calibrator. Unit includes a prechamber for material transfer and dedicated supports.

Dimensions and construction
Dimensions (L×D×H):
working area mm 1400x700x900
prechamber inner dim. mm 300x300x460
well for containment of the dose calibrator mm 200x200x450
Support mm 1300x700x850
overall dim. mm 2005x950x2100
Total weight kg 450 approx

Electrical supply
Electric power supply: 230 VAC
Frequency: 50-60 Hz
Plug: 230 VAC - 2P+T 16 A S17
Internal power socket: 230 V - 4 A

UL compliance (option/specifications)
Electric power supply 120 VAC - Frequency 60 Hz - Maximum absorbed current 28 A
Internal Socket 120 V - 8 A (U.S.A. Type)
Pollution degree: 2 - Overvoltage category: III - Main supply Voltage fluctuations ± 10%

Application example
Designed for use with process modules for At-211 (e.g., automated purification and synthesis modules). Suitable as a protected environment to integrate platforms capable of purifying At-211 from irradiated targets and performing automated, reproducible radiopharmaceutical synthesis. Some related solutions may bear CE marking and CB certifications for R&D and clinical development contexts.

Therapeutic context and notes
At-211 is an alpha-emitting radioisotope with a short half-life and decay characteristics favorable for use as a payload in targeted radionuclide therapies. Targeted radionuclide therapies enable delivery of radiation to tumor cells while reducing systemic side effects. Production of advanced radioisotopes may require medium/high-energy cyclotrons and dedicated purification and synthesis processes.

Technical specifications

• Model: GLOVE BOX SGS4030
• Working area: 1400 x 700 x 900 mm (L x D x H)
• Prechamber (inner dim.): 300 x 300 x 460 mm
• Well for dose calibrator: 200 x 200 x 450 mm
• Support: 1300 x 700 x 850 mm
• Overall dimensions: 2005 x 950 x 2100 mm
• Total weight: approx. 450 kg
• Power supply: 230 VAC, 50-60 Hz
• Recommended plug: 230 VAC - 2P+T 16 A S17
• Internal sockets: 230 V - 4 A
• UL option: 120 VAC, 60 Hz; max absorbed current 28 A; internal socket 120 V - 8 A
• Pollution degree: 2
• Overvoltage category: III
• Allowed mains voltage fluctuation: ± 10%
• Note: left side of the work area equipped with a well for dose calibrator containment
