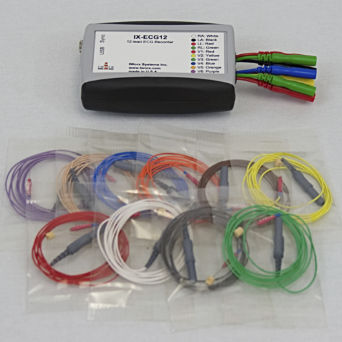

The IX-ECG12-SA system is optimized for measuring small animal ECG.
The IX-ECG12-SA system includes:
10 x C-ISO-GNE: a set of 10 platinum needle electrodes.
LabScribe ECG Analysis module
The iWorx 12 lead ECG recorder enables accurate and reliable ECG analysis of resting and exercising humans or animals. Measuring all 12 ECG leads simultaneously, this compact and lightweight PC-based ECG recorder enables highly detailed analysis of the anterior, lateral and inferior regions of the heart. The IX-ECG12 connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module.
Here is an appnote on using the IX-ECG12-SA for recording 6 lead Rat ECG.
Heart Rate Variability Kubios HRV – Heart Rate Variability Analysis Software is an advanced tool for studying the variability of heart beat intervals. Data can be exported from LabScribe using the edf export option and then imported into Kubios HRV for analysis, as shown in this technote
Analog Inputs10 Electrodes: RA,LA,RL,LL,V1,V2,V3,V4,V5
Input Range2400mV, 1200mV, 800mV,400mV, 200mV, 100mV,50mV, 25mV, 12mV
Sampling Speed20k Samples/sec per channel simultaneous
System noise< 6 microVolts
Warranty and UpgradesProtected by a 3 year warranty
