Conical dental implant JDPterygo

titaniuminternal hexagonstraight

Product Details

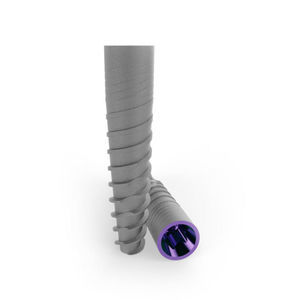

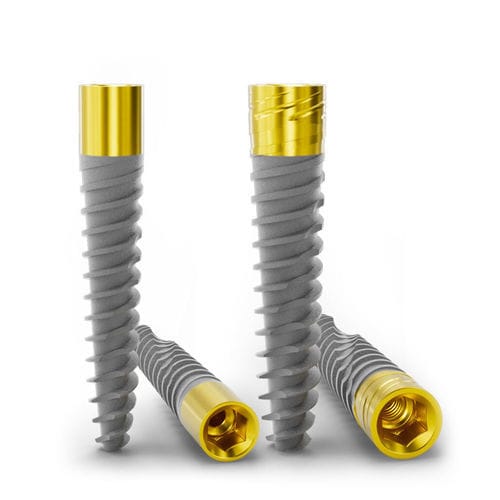

JDPterygo is a dental implant designed to achieve perfect anchorage in the pterygoid bone. Available in two versions: JDPterygo One with Ø 3.3 mm and JDPterygo with Ø 4 mm. A minimally invasive solution to treat the atrophic posterior maxilla. Combined with JDNasal and JDZygoma implants, it can be used in the Maxilla-For-All® protocol.

Connection
Internal Hexagonal connection
Connection compatible with JDEvolution S for diameter 3.3 and with JDEvolution Plus for diameter 4.0.

JDPterygo One

• Diameter: Ø3.3mm
• Lengths: 13mm, 15mm, 18mm, 20mm

JDPterygo

• Diameter: Ø4mm
• Lengths: 13mm, 15mm, 18mm, 20mm

Indications

• Treatment of the atrophic maxilla
• Immediate loading
• Safe insertion into the pterygoid bone

Advantages

• Its 3.5-mm anodized implant collar promotes tissue integration at every level, even if the clinician decides to leave the implant in a transmucosal position
• Made of grade 4 titanium, the JDPterygo implant is a minimally invasive solution in the atrophic posterior maxilla
• The JDPterygo implant site preparation sequence can be performed following the guided and unguided surgical protocol
• Combined with JDNasal and JDZygoma implants, it can be used in the Maxilla-For-All® protocol
• Single prosthetic connection to make your stock management easier

Note
Not all products manufactured by JDentalCare and represented in this website have been regulatory cleared/released for sale in all countries and/or have been licensed in accordance with FDA Rules.

Technical Specifications / Characteristics

• Versions: JDPterygo One (Ø3.3 mm), JDPterygo (Ø4 mm)
• Lengths available: 13mm, 15mm, 18mm, 20mm
• Material: Grade 4 titanium
• Collar: 3.5-mm anodized
• Connection: Internal hexagonal
• Compatible with: JDEvolution S (3.3 mm), JDEvolution Plus (4.0 mm)
• Protocols: Guided and unguided surgical protocol
• Indications: Atrophic posterior maxilla, Maxilla-For-All® protocol
