Cylindrical dental implant JDNasal

titaniumhexagonalinternal

Product Details

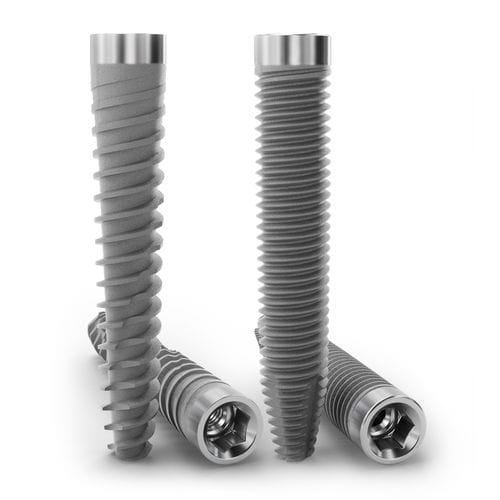

The JDNasal implant is indicated for severe cases of the atrophic maxilla as it anchors to the nasal bone. Featuring an internal hexagonal connection, this implant is available with cylindrical-conical shape, specially designed to be placed in soft bone, or with conical profile with aggressive threading. JDNasal implants feature a 1.5-mm-machined collar in the coronal part.

Combined with JDPterygo and JDZygoma implants, it can be used in the Maxilla-For-All® protocol.

Connection
Hexagonal connection
Connection compatible with JDEvolution Plus

Dimensions
Diameter: Ø4mm
Lengths: 18mm, 20mm, 22mm, 24mm, 26mm

Clinical Features
Treatment of the atrophic maxilla
Immediate loading
Safe insertion into the nasal bone

Advantages

• Useful in severe cases of the atrophic maxilla
• It enables the use of the maxillary bone surrounding the nose due to its special length, up to 26 mm
• JDNasal implant site preparation sequence can be performed following the guided and unguided surgical protocol
• Combined with JDPterygo and JDZygoma implants, it can be used in the Maxilla-For-All® protocol
• Single prosthetic connection to make your stock management easier

Notes
Not all products manufactured by JDentalCare and represented in this website have been regulatory cleared/released for sale in all countries and/or have been licensed in accordance with FDA Rules

Technical Specifications / Characteristics

• Indication: Severe atrophic maxilla
• Anchorage: Nasal bone
• Connection: Internal hexagonal
• Collar: 1.5 mm machined, coronal part
• Shape: Cylindrical-conical or conical with aggressive threading
• Diameter: 4 mm
• Lengths: 18, 20, 22, 24, 26 mm
• Compatible protocol: Maxilla-For-All®
• Prosthetic connection: Single
