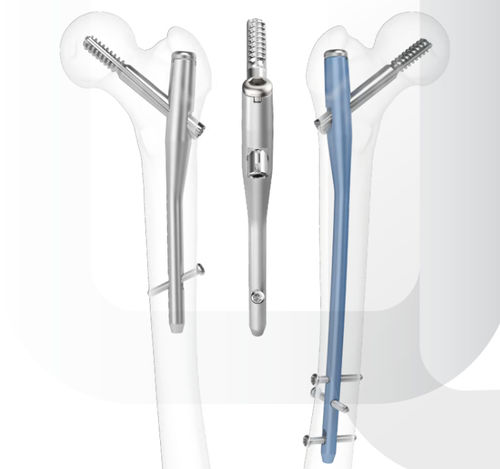

Femoral intramedullary nail ARIX

proximal fixationmid-shaft fixationright

ARIX Femur Nail System is indicated for the treatment of stable and unstable fractures as well as for stabilization of bones and correction of bone deformities in the intracapsular, trochanteric, subtrochanteric and shaft regions of the femur (including osteoporotic and osteopenic bone). ARIX Femur Nail System (1) Short Nail Material : Ti-6Al-4V ELI ㆍColor : Silver ㆍNail Length 180 mm (Standard) 170, 190, 200 mm (Available) ㆍNail Diameter : ㆍProximal : 15.5 mm ㆍDistal : 10, 11, 12 mm(Standard) 13 mm(Available) ㆍCCD Angle : 125°, 130° ㆍMedial-Lateral Angle : 5° ㆍDistal Interlocking Screw Hole : 5 mm dynamization is possible (2) Long Nail ㆍMaterial : Ti-6Al-4V ELI ㆍColor : Blue(Right) / Green(Left) ㆍNail Length : 220, 240, 260, 280, 300, 320, 340, 360, 380, 400, 420, 440 mm ㆍNail Diameter : ㆍProximal : 15.5 mm ㆍDistal : 10 mm(Standard) 11, 12, 13 mm(Available) ㆍCCD Angle : 125°, 130° ㆍMedial-Lateral Angle : 5° ㆍAnteversion Angle : 10° ㆍAnterior Bowing Radius : 1000 mm ㆍDistal Interlocking Screw Hole : 2 Cross Static Slot 5 mm dynamization is possible (3) IM Nail
