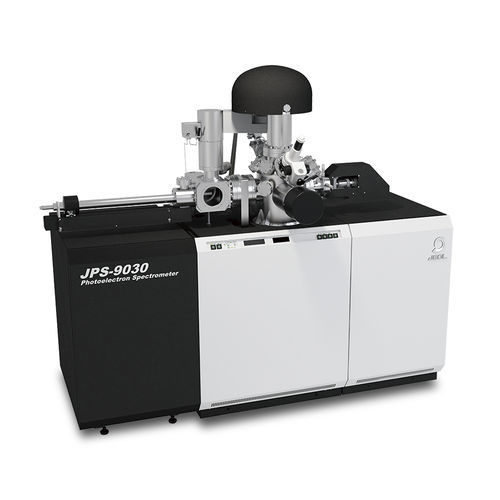

Visible spectrometer JPS-9030

X-raytransfer

The JPS-9030 is equipped with a newly-designed user interface that further improves operability and also debuts a sophisticated, new modern and sleek exterior design. Depth profiling optimized for the application The newly-developed Kaufman-type etching ion source provides etching rates from 1 nm/min to 100 nm/min (SiO2 equivalent), and allows a wide range of settings. It is capable of depth profiles suitable for any application, from measurements demanding precision to processes that require speed. The mounting of the Kaufman-type etching ion source to the specimen exchange chamber facilitates prevention of contamination of the measurement chamber. Newly-developed software provides even greater ease-of-use SpecSurf Ver. 2.0 now incorporates a ribbon-style GUI, offering a user-friendly environment in which all operations can be performed with the mouse. With JEOL’s own automatic qualitative analysis function, it is possible to sequentially perform qualitative, quantitative and chemical state analyses for multiple acquisition points. Ultra-high surface sensitivity The JPS-9030 supports techniques like Angle-Resolved XPS (ARXPS) and Total Reflection XPS (TRXPS), and is capable of ultra-high sensitive analysis of the top surfaces of 1 nm (standard measurement method 6 nm or more). A wealth of options Monochromatic X-ray sources Argon gas cluster ion source suitable for organic samples Infra-red heating system capable up to temperatures of 1,000 °C or higher Transfer vessel to protect specimens from exposure to the atmosphere Specifications Intensity (Mg Kα, 300W equivalent) - 1,000,000 cps or more (at Ag 3d5/2 FWHM is 1.0 eV) X-ray source - Mg/Al twin anode
