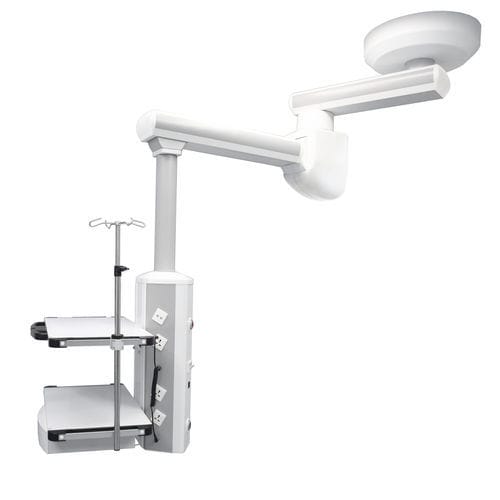

Ceiling-mounted medical pendant FY-ED270/S320
operating room2-armwith shelves

Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 2
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 3
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 4
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 5
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 6
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 7
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 8
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 9
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 10
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 11
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 12
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 13
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 14
Ceiling-mounted medical pendant - FY-ED270/S320 - Jiangsu Fuyou Medical - operating room / 2-arm / with shelves - image - 15
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Installation
ceiling-mounted
Applications
operating room
Configuration
2-arm
Other characteristics
with shelves, with column, with pneumatic brake
Load capacity

Max.: 350 kg
(772 lb)

Min.: 270 kg
(595 lb)

Description

Type: Electrical Cantilever length: double arm, 800, CUSTOMIZABLE+1066mm, FIXED Turning radius:800+1066mm Electrical lift range: 400-600mm, adjustable Max load: 270kg Rotating angle: 340° Brake: friction, double braking system optional(adding pneumatic brake) Function column height: 600 -1000mm, customizable Communication Socket: RJ45(6 types) Instrument platform: 2 layers， tray height adjustable Power socket:（optional with GB Class3 general) 220V 50Hz 10A Gas terminal: VAC*1 O2*2 AIR, customizable Equipotential ground: equivalent potential port x 2
