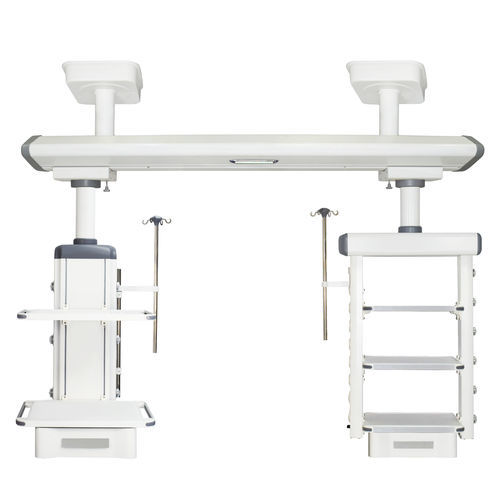

Medical pendant FY-D2

ceiling-mountedoperating roomfixed

"1. Working power supply: AC220V, 50Hz; 2, beam length 2500-3000mm (the actual size is subject to the user's field measurement); LED strip lamp, the number of lamp beads 15; 3, optional configuration of brake brake device, the equipment does not drift, the equipment can move easily when loosened; 4, hanger type dry section tower: 1 (moving distance 300mm, adjustable). The configuration is as follows: (1) Instrument platform: 2 layers (height adjustable) 600mm×450mm silicon gel Angle protection anti-collision design (2) Gas terminal standard configuration: (German standard 2 oxygen,2 suction,2 air) can be configured according to the hospital a, interface color and shape is different, with anti-error function; b. More than 20,000 times of insertion and removal; c, the use of secondary seal, with three states (on, off, pull), with gas maintenance; (3) Multi-functional power socket: 10 (according to the hospital configuration), 220V (4) Ground terminal: 2; (5) Network interface: 1; (6) 1 drawer; (7) Stainless steel infusion rod frame 1; (8) Rotatable: 0 ~ 340°; (9) dry section tower net load ≥180kg; 5, davit type wet segment tower: 1 (moving distance 300mm, adjustable). The configuration is as follows: (1) Instrument platform: 3 layers (height adjustable) 560mm×550mm silicon gel Angle protection anti-collision design (2) Gas terminal standard configuration: (German standard for 2 oxygen, 2 suction, 2 air) can be configured according to the hospital a, with anti-error function; b. More than 20,000 times of insertion and removal; c, the use of secondary seal, with three states (on, off, pull), with gas maintenance;
