Laboratory sterilizer SDL-D0313

for bone densitometryCSSDhospital

Product overview

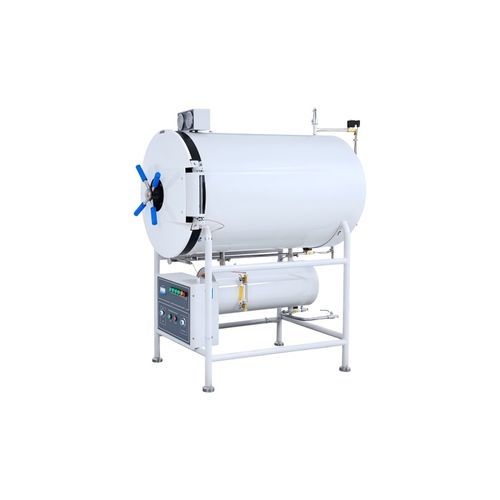

The SDL-D0313 horizontal cylindrical pressure steam sterilizer is a laboratory/clinical autoclave designed for routine steam sterilization of surgical instruments and medical supplies. It features a 23 L chamber and selectable sterilization cycles at 121°C and 134°C, suitable for hospitals, clinics and outpatient facilities.

Main features

• Sterilization chamber in stainless steel for corrosion resistance and easy decontamination.
• Outer shell in carbon steel with plastic coating to facilitate cleaning of the exterior surface.
• Stainless steel sliding instrument trays for safe placement and removal of loads.
• Steam jacket with outer shell and insulating cotton to reduce heat loss and limit rise of ambient temperature.
• Stainless steel piping system for automatic air and condensate discharge, ensuring uniform temperature distribution in the chamber.
• Automatic control system operated via a clear control panel and push buttons for repeatable cycle selection.
• Door manufactured in stainless steel with safety interlock.

Technical parameters (table)
Dimensions: 490 x 455 x 690 mm
Chamber volume: 23 L
Inner diameter: Φ247 x 450 mm
Instrument tray size: 192 x 380 mm
Sterilization temperature: 121°C / 134°C
Water tank capacity: 2.5 L (max) / 0.5 L (min)
Circuit breaker: F16A / 400V
Packaging dimensions: 560 x 510 x 550 mm
Net weight: 54 kg

Accessories & construction notes

• Instrument trays: stainless steel sliding trays for loading and unloading instruments.
• Piping: stainless steel piping arranged for automatic removal of air and condensate to maintain uniform chamber conditions.
• Control: automatic control via an intuitive panel with clearly marked push buttons.

Technical specifications

• Model: SDL-D0313
• Dimensions: 490 x 455 x 690 mm
• Chamber volume: 23 L
• Inner diameter: Φ247 x 450 mm
• Instrument tray size: 192 x 380 mm
• Sterilization temperature options: 121°C and 134°C
• Water tank capacity: 2.5 L (max) / 0.5 L (min)
• Circuit breaker: F16A / 400V
• Packaging dimensions: 560 x 510 x 550 mm
• Net weight: 54 kg
