TMS + rTMS transcranial magnetic stimulator YK-7000A

for treatment of neurasthenia

The YK-7000A is a portable medical transcranial magnetic stimulation (TMS) device delivering repetitive transcranial magnetic stimulation (rTMS) via a constructed three-dimensional magnetic therapy network to stimulate the central nervous system and support neurological rehabilitation. The device integrates magnetic field therapy, simulated bioelectric postauricular electrical stimulation and multi-frequency micro-vibration for targeted, non-invasive neuromodulation.

Core technology features

• Non-invasive design: no surgery, no puncture, no intracranial intervention required.
• Precise targeting: capable of applying stimulation to specific cortical targets.
• Controlled physical parameters: adjustable intensity and timing suitable for repeated clinical use.

Simulated bioelectric postauricular electrical stimulation features

• Postauricular electrode placement for targeted cerebellar/parietal nucleus stimulation and simplified operation.
• Bioelectric simulation to mimic physiological signals, improving tissue compatibility and reducing neural stress responses.
• Adjustable parameters: stimulation intensity, frequency and timing configurable for individual protocols.

Magnetic therapy cap technology features

• Distributed multi-site coverage: cap integrates multiple magnetic therapy units for simultaneous target coverage.
• Ergonomic, flexible and comfortable design with adjustable size to fit different head shapes.
• Controllable magnetic field parameters: precise adjustment of field strength and duration.
• Designed to minimize adverse effects through non-invasive application.

Scope of application

• Adjunctive treatment for ischemic cerebrovascular disease, neurasthenia and brain injury rehabilitation.

Characteristics

• Entire treatment process is non-invasive (no surgery or intracranial intervention).
• Precise coverage of multiple targets, usable individually or in combination.
• Personalized protocols with adjustable parameters to optimize outcomes.
• Designed for compatibility and tolerance to reduce neural tissue stress.
• Synergistic combination of electromagnetic field, simulated bioelectricity and multi-frequency micro-vibration.
• Three non-invasive modalities operate together and complement each other.
• Dual safety design with prolonged and precise control of therapeutic parameters.
• Portable main unit for transport and clinical flexibility.
• Multiple language options available for user interface.
• Certifications referenced on the product page: CE, ISO (as indicated).

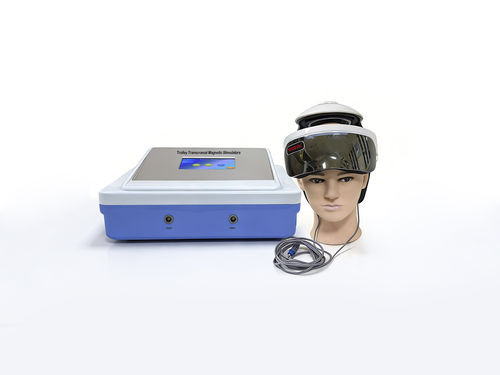

Configuration

• YK-7000A main unit (transcranial magnetic stimulator).
• Smart treatment cap — multiple cap models available to match indications and head size.

Technical specifications

• Model: YK-7000A.
• Treatment modalities: rTMS, simulated bioelectric postauricular electrical stimulation, multi-frequency micro-vibration.
• Treatment time: adjustable 0–99 minutes, 1-minute steps; default 20 minutes; includes countdown timer and alarm.
• Magnetic therapy intensity: two levels — strong: 10–17 mT; weak: 3–9 mT.
• Magnetic field frequency: 50 Hz ± 12%.
• Vibration intensity: four levels — off / weak / medium / strong; corresponding peak driving voltages: 0 V, 10 V, 16 V, 27 V.
• Vibration frequency options: 0 Hz, 2 Hz, 5 Hz, 10 Hz.
• Treatment cap: integrated aviation-style cap, ergonomic and size-adjustable to fit different head shapes.
• Main unit: compact, integrated and portable design.
• Languages & compliance: multiple-language interface options; CE and ISO certifications referenced on product page.
