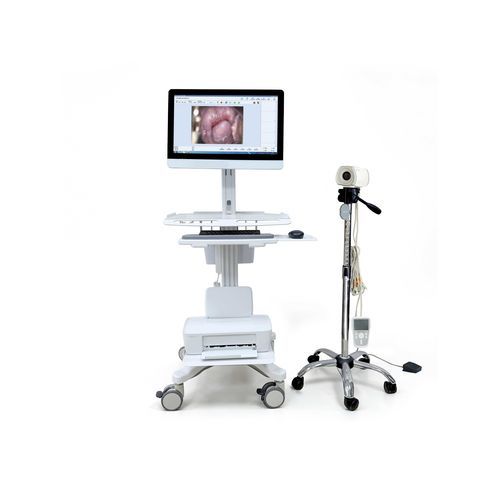

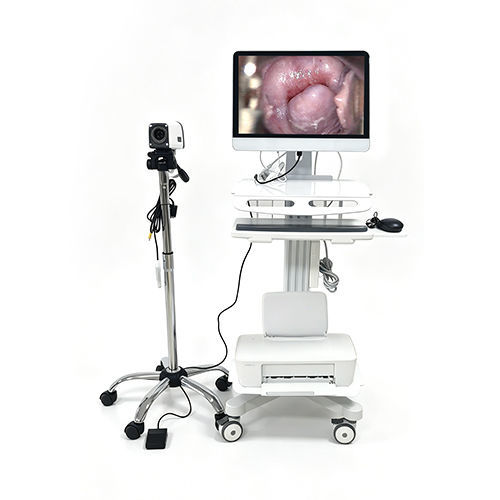

Video colposcope EK-6000E

digitaltrolley-mounted

Product Overview
The EK-6000E is a trolley-mounted fourth-generation digital electronic colposcope for clinical examination and documentation of cervical, vaginal and vulvar lesions. It delivers real-time 1080P HD imaging, DSP dynamic autofocus and integrated analysis tools to support screening and diagnostic workflows.

Core technologies

• HD-SDI large-screen digital HD video output for external recording and display
• DSP dynamic auto-focus system and HD ultra-clear imaging technology
• AWB automatic internal light metering with dynamic anti-shake focus balance
• 5-level adjustable dual-ring multi-point LED for uniform, shadow-free illumination
• Image light-spot subtraction technology to enhance visualization of fine details
• RCI colposcopy evaluation and analysis module capable of generating two-cancer screening reports

Functions

• Supports minimally invasive screening and diagnosis of cervical, vaginal and vulvar conditions with optical and digital zoom (30x optical; 1–8x digital).
• Live 1080P HD display enables observation of very small lesions, improving diagnostic accuracy for erosion, precancerous changes and cancer.
• Image display, freeze and capture functions, plus timed acquisition for acetic acid/iodine reactions; localized biopsy reporting streamlines clinical workflow and reduces patient discomfort.

Characteristics

• Original HD color camera system supporting 1080P HD output (HD-SDI)
• Lens: 1/4-inch Sony high-resolution color CCD
• Effective pixels: ≥2.8 million (source also cites ≥5.8 MP)
• Magnification: 30x optical; 1–8x digital focusing; maximum combined magnification reported up to 240x
• Electronic anti-vibration measures and 360° dynamic focus balance for stable imaging
• Built-in software: filter, acetic acid reaction detection, image analysis and calculation, RCI evaluation and two-cancer screening report generation

Technical specifications

• Model: EK-6000E
• Camera system: Original HD color camera, 1080P output (HD-SDI)
• Image sensor: 1/4-inch Sony color high-resolution CCD
• Effective pixels: ≥2.8 MP (source also mentions ≥5.8 MP)
• Optical magnification: 30x
• Digital focusing: 1–8x (combined max reported up to 240x)
• Autofocus: DSP dynamic auto-focus with dynamic anti-shake focus balance
• Illumination: 5-level adjustable dual-ring multi-point LED; concentrated uniform illumination; image light-spot subtraction technology
• Software features: filter, acetic acid reaction detection, image analysis and calculation, RCI evaluation and two-cancer screening report generation, localized biopsy reporting
• Stability: electronic anti-vibration measures; 360° dynamic focus balance
