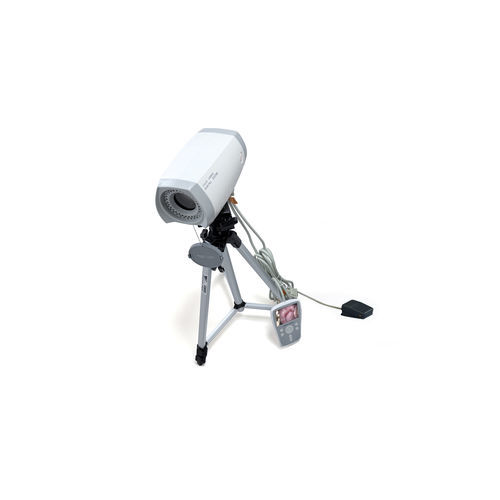

Video colposcope EK-6000AX

transportable

Product overview
The EK-6000AX high-definition lens kit is designed for use with digital electronic colposcopes to provide real-time gynecological imaging for cervical, vaginal and vulvar examination and documentation. The kit supports 1080P output and integration with clinical analysis software to assist clinicians in screening and recording lesions during colposcopy.

Core technologies

• HD-SDI large-screen digital HD video output for external displays and recording
• DSP dynamic autofocus combined with HD ultra‑clear imaging
• AWB automatic internal light metering with dynamic anti‑shake focus balance
• 5-level adjustable dual-ring multi‑point LED illumination for uniform, shadow‑free lighting
• Image spot subtraction technology to enhance fine detail and vascular patterns
• RCI colposcopy evaluation and analysis capable of producing two‑cancer screening reports

Functions

• Supports non‑traumatic optical screening and more intuitive, accurate assessment of cervical, vaginal and vulvar conditions
• Optical magnification up to 30x with additional 1–8x digital focusing; system maximum magnification reported up to 240x
• High‑clarity imaging to aid detection of erosion, precancerous lesions and malignancies
• Image display, freeze, capture and review functions for clinical documentation and patient consultation

Characteristics

• Original HD color camera system supporting 1080P display
• Camera module: 1/4-inch high‑resolution Sony CCD
• Multi‑megapixel resolution with optical and digital zoom capabilities
• Built‑in software filters and acetic acid reaction timing functions; hospital PASS/EMR connectivity; RCI analysis
• Electronic anti‑vibration design and 360° dynamic focus balance
• Concentrated, uniform illumination ensuring no light loss at high magnification

Configuration

• High‑definition lens kit (EK-6000AX)
• HD‑SDI large‑screen digital HD video output
• EK‑6000B intelligent analysis software (RCI evaluation)

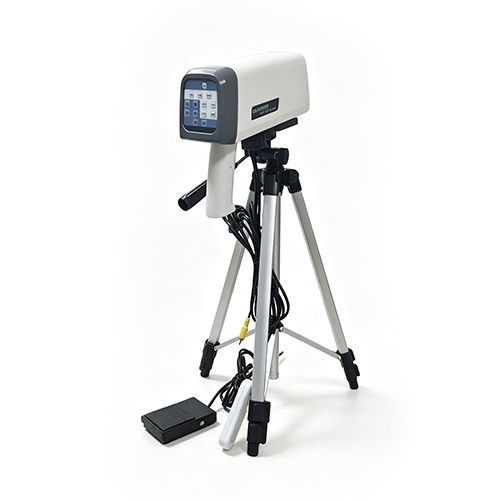

• Portable tripod and remote control
• Integrated workstation
• Portable aluminium‑plastic transport case

Main parameters

• Lens/camera: Sony HD color camera module, supports 1080P
• Resolution: reported values ≥ 2.8 MP and ≥ 5.8 MP in documentation
• Optical magnification: 30x; digital focusing: 1–8x; reported maximum magnification up to 240x
• Focusing: DSP dynamic autofocus system with manual focus adjustment
• Illumination: adjustable LED dual‑ring light; illuminance ≥ 2000 Lux
• Software features: acetic acid/iodine reaction timing and timed acquisition; built‑in filter modes (light green, dark green, negative, gray)
• Image processing: spot subtraction, continuous static capture, dynamic recording and image library for comparison
• Mechanical: universal‑wheel lens bracket with smooth movement, horizontal rotation, multi‑angle tilt, stepless adjustment and locking

Technical specifications

• Model: EK‑6000AX (high‑definition lens kit for digital electronic colposcope)
• Camera sensor: 1/4‑inch Sony high‑resolution CCD
• Video output: HD‑SDI large‑screen digital HD
• Display support: 1080P HD
• Resolution (reported): ≥ 2.8 MP / ≥ 5.8 MP
• Optical magnification: 30x; digital focus/zoom: 1–8x; max reported up to 240x
• Autofocus: DSP dynamic autofocus + manual
• Illumination tech: 5‑level adjustable dual‑ring multi‑point LED; illuminance ≥ 2000 Lux
• Software: EK‑6000B intelligent analysis software with RCI evaluation, PASS/EMR connectivity, timed reaction acquisition and filter modes
• Accessories: portable tripod, remote control, integrated workstation, aluminium‑plastic transport case
