Assessment measuring meter EK-8300

movementfor healthcare facilitiesfor medical research

| Product Overview

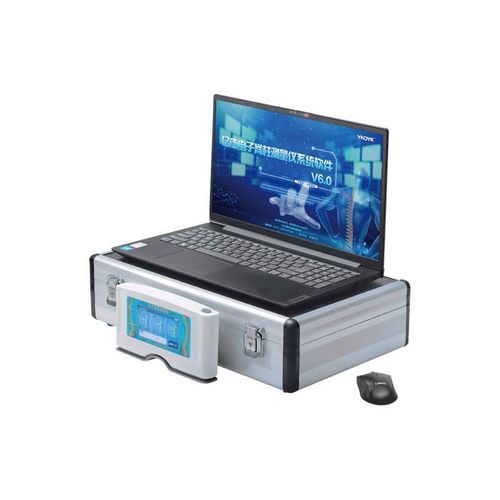

The EK-8300 is a handheld electronic spinal measurement instrument supplied with a laptop. It provides non-invasive, pain-free, radiation-free measurement of spinal angular parameters using geodetic inclination and spatial positioning technologies. The system delivers real-time angular data for static and dynamic assessments to support quantitative evaluation of spinal curvature, posture and mobility.

| Diseases treated
Abnormal spinal curvature includes three-dimensional deformities such as scoliosis (lateral curvature), kyphosis (thoracic hyperkyphosis) and lordosis (excessive lumbar lordosis or pelvic anterior tilt). Causes may be congenital, postural or disease-related; severe cases can lead to pain, reduced cardiopulmonary function, neurological impairment or organ compression. Early detection and longitudinal monitoring are essential for clinical decision-making.

| Core measurement technology

• Measurement of 6 major regions across 14 standardized postures
• Color touchscreen measurement with intelligent voice prompts
• Spatial dynamic vector positioning technology for accurate orientation tracking
• Non-invasive, pain-free and radiation-free measurement
• Handheld, portable operation for bedside and clinic use
• Objective measurements independent of room location

| Measuring items

• Kyphosis measurement (thoracic kyphosis)
• Lateral curvature (cervical, thoracic, lumbar regions)
• Flexion and extension (cervical, thoracic, lumbar)
• Horizontal rotation angles (cervical, thoracic, lumbar)
• Trunk tilt angle
• Body balance assessment — head, shoulders, waist

| Application fields
Suitable for use in schools, pediatrics, orthopedics, rehabilitation, sports medicine, anatomy and physiology laboratories, health screening centers, national fitness monitoring, disease control centers, community health centers and sanatoriums.

| Features

• Fast examination workflow and simple operation
• Laptop-based system for mobility and on-site testing
• Multilingual software support
• Network connectivity, Bluetooth transmission, database backup/restore
• No age or body type restrictions for measurement
• Optional modules: ID card recognition, barcode scanner, thermal printer
• Includes clinical databases for international reference
• CE and ISO certifications as stated

| Configuration

• High-end laptop (Windows 10)
• PC platform with preinstalled intelligent analysis software
• Bluetooth receiver
• Choice of three measuring instrument host models (A, B, C)
• Portable aluminium-plastic carrying case
• Optional thermal printer

| Main parameters

• Form factor: laptop-style unit, compact and portable
• Measurement items (standard): 14 items including trunk tilt, kyphosis, lateral curvature, flexion/extension, horizontal rotation, and balance metrics
• Single-item measurement time: <15 s
• Measurement angle range: 0–179°
• Measurement accuracy: ±1.5°
• Bluetooth transmission: minimum 3 m unobstructed between computer and main unit
• Main unit: color touchscreen, selectable measurement items, Type-C charging, intelligent voice prompts
• Software: automatic data analysis, single/batch report generation, preview/print, medical record management, Excel import/export, templates for departments/doctors/diagnoses, measurement-time alarm, network and database management

| Technical specifications

• Model: EK-8300
• Product type: handheld electronic spinal measurement instrument with laptop system
• Included computer: laptop (Windows 10)
• Standard measurement count: 14 items
• Accuracy: ±1.5°
• Angle range: 0–179°
• Single measurement time: <15 s
• Wireless: Bluetooth (min. 3 m unobstructed)
• Charging: Type-C for main unit
• Display/input: color touchscreen with voice prompts
• Software: intelligent analysis, report generation, batch printing, medical record management, Excel import/export, templates
• Optional accessories: ID card reader, barcode scanner, thermal printer, carrying case
• Certifications: CE, ISO (as stated)
