Posture assessment system EK-8400

spinal scoliosisneurologiccompact

Product Overview
The EK-8400 portable electronic spine measurement instrument is a handheld, non-invasive, radiation-free device for quantitative assessment of spinal alignment and mobility. Using geodetic inclination and spatial positioning technologies, it provides real-time angular measurements of spinal curvature, postural asymmetries and segmental mobility in both static and dynamic conditions.

Diseases treated
Spinal deformities such as scoliosis (lateral curvature), kyphosis (increased thoracic curvature) and lordosis (lumbar anterior tilt) can be congenital or acquired (poor posture, neuromuscular or structural disorders). These conditions may cause chronic pain, impaired cardiopulmonary function, neurological compression and reduced mobility. Early detection and regular monitoring support clinical decision-making and rehabilitation planning.

Measuring Host / Core Technology

• Measures six major spinal regions across 14 postures
• Touchscreen operation with guided voice prompts
• Spatial dynamic vector positioning technology for accurate orientation data
• Pain-free, non-invasive, radiation-free measurements
• Handheld, battery-powered and mobile use
• Objective measurements independent of measurement location

Measuring Items

• Trunk tilt angle
• Kyphosis (thoracic curvature)
• Lateral curvature — cervical, thoracic, lumbar regions
• Flexion/extension range — cervical, thoracic, lumbar regions
• Axial rotation angle — cervical, thoracic, lumbar regions
• Head balance
• Shoulder balance
• Pelvic/lumbar balance

Application Fields
Hospitals; orthopedic and pediatric departments; rehabilitation clinics; sports medicine centers; anatomy and physiology laboratories; national fitness monitoring centers; public health and disease control centers; community health centers; health examination centers.

Characteristics

• Rapid examination and simple clinical workflow
• Portable design for bedside and outpatient use
• Multilingual interface options
• Network connectivity, Bluetooth transmission, database backup/restore
• Suitable for all ages and body types
• Optional ID card recognition, barcode scanning and thermal printing
• Includes clinical reference databases from multiple countries
• CE and ISO certifications

Configuration

• Embedded industrial-grade control computer (reputable brand)
• PC platform with Windows 10 software for analysis and reporting
• Intelligent analysis software
• Bluetooth receiver
• Three host models available (A, B, C)
• Optional thermal printer

Main parameters

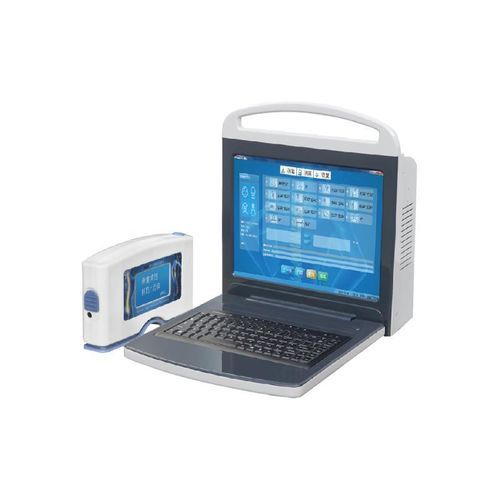

• Portable all-in-one flip-top unit, compact and easy to carry
• Measures 14 items across multiple postures (see Measuring Items)
• Single-item measurement time: <15 seconds
• Measurement angle range: 0–179°
• Measurement accuracy: ±1.5°
• Bluetooth data transmission (recommended unobstructed distance ≥ 3 m to PC)
• Software automatically analyzes data and displays the fourteen measurement items; trunk tilt reports classify results (normal, lateral curvature I/II/III)
• Alarm function for measurement timeout (>10 seconds)
• Software features: create/search/delete medical records; batch import/export via Excel; customizable templates for departments and clinicians; preview and print individual and aggregate reports; unlimited batch report printing and editing

Caractéristiques / spécifications techniques

• Model: EK-8400 (portable electronic spine measurement instrument)
• Measurement scope: 14 spinal/postural metrics across multiple postures
• Single measurement time: <15 seconds per item
• Angle measurement range: 0–179°
• Measurement accuracy: ±1.5°
• Data transmission: Bluetooth (recommended unobstructed distance ≥3 m between device and PC)
• User interface: Touchscreen with voice prompts; PC software on Windows 10 for analysis and reporting
• Ports/functions: network connectivity, database backup/restore, optional ID card/barcode reading and thermal printing
• Certifications: CE, ISO
