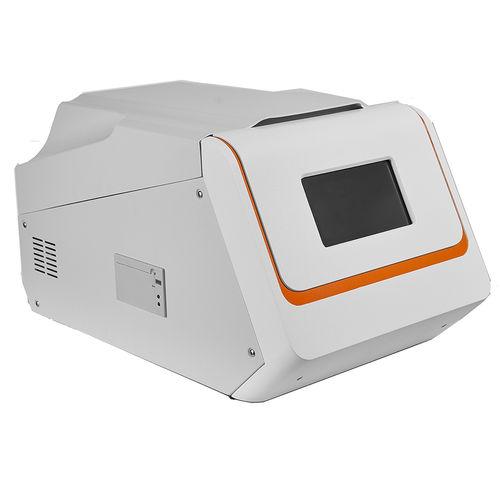

Automatic biochemistry analyzer ZC6100

benchtopRS232

Two test mode: Automatic washing and Disposable cuvette Open system, real time curve showing LED lamp, ≥10000 hour for long life 7 inch Color LCD, touch screen Memory for 10,000 sample results RS232 interface, PC connecting Probe with anti-collision function, liquid level detection High pressure water flush interior the probe DESCRIPTION: Test mode: - Kinetic, End-point, Fixed-time, Turbidimetry , Absorbance Sample positions: - 24 +5 (Using original tube) Calibration position: - 1 QC positon: - 1 ST position: - 1 Reagent positions: - 54 (27 for 6mL; 27 for 24mL); Cuvettes position: - 81 can be reusable Sample volume: - 2~30 uL, 0.1ul increasing Reagent volume: - 20~350 uL, 0.1ul increasing Test speed: - 120 tests /hour Wavelength: - 8 Wavelength, 340, 405,450, 510, 546, 578, 630,700 nm Absorbance range: - 0~4.000 Abs Absorbance precision: - inside 0.00001 Abs Repeatability CV : - < 1% Carry-over: - < 0.1% Water consumption: - 5L/H for Automatic washing mode; 2.5L/H for Disposable cuvette mode Quality control curve: - SD、CV%、L-J quality control curve for every test item Printer: - Internal thermal sensitive printer Interface: - RS-232 Work Environment: - Temperature 10℃ ~ 30℃, Humidity: ≤85% Power supply: - 100~240VAC，50/60Hz，100VA
