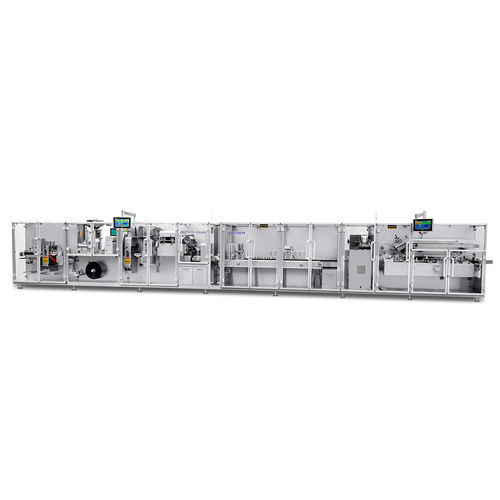

Packaging system with cartoner module BPL400P
servo-drivenautomaticcontinuous

packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
packaging system with cartoner module
Add to favorites
Compare this product


Characteristics

Operational mode
automatic, continuous, servo-driven, robotic
Type
horizontal, rotary
Configuration
floor-standing
Product applications
for tablets, for capsules, solids, for liquids
Container type
blister, for ampoules, for vials, syringe
Application domain
for the pharmaceutical industry, medical industry, for the cosmetics industry
Other characteristics
high-speed, high-performance
Options
sealing, with cartoner module
Production capacity

400 p/min

Weight

8,000 kg
(17,637 lb)

Length

12,300 mm
(484.25 in)

Width

1,100 mm
(43.31 in)

Height

1,800 mm
(70.87 in)

Description

This Blister-Cartoner Line is combined with the BMP270H Blister Machine and ZH400i Cartoner. Through the integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Jornen’s innovative response to the need for high efficiency and low-cost operation, flexibility, and maximum productivity for mass batch production. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to the Blister module with forming material reels of up to 600mm in diameter and a waste material trimming cutter. ·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt. ·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to a servo-regulated robot that picks up blister cards and transfers them to the cartoning machine synchronously, the servo technology can precisely place one, two, or more blister cards (according to customer requirement) in each magazine. These accurately control blister transfer, positioning, and feeding, etc., to assure the stability of high running speed. ·This line adopts the fully-enclosed structure and safety door. Main Technical Parameters Range of Carton Size: Max.: 200x90x60mm Min.: 75x30x15mm Machine Power: 40kw
