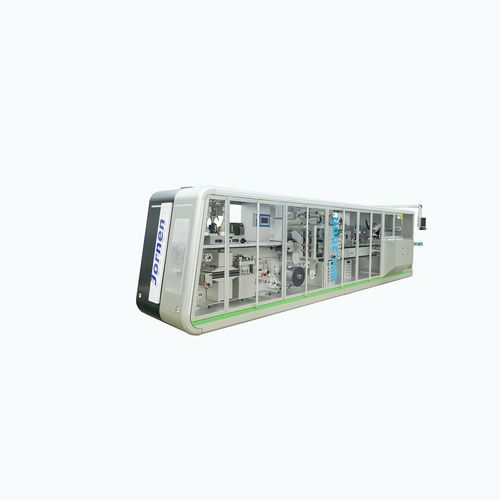

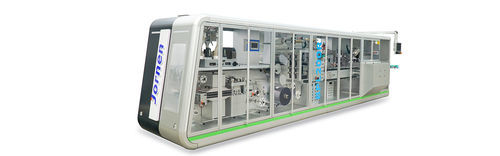

Servo-driven packaging system BPL200R (compact)

line-typecompactblister

Product overview
The compact BPL200R integrates blister forming, blister transfer and cartoning into a single, space-saving packaging line of just 7.4 m. Designed for multi-variant and small-batch production (pharmaceuticals and consumer goods), it delivers up to 200 cartons/min with precise servo indexing and gentle blister handling.

Key features

• Integration of blister former, transfer system and cartoner for a continuous, compact production line.
• Engineered for flexibility: suited to multi-variant and small-batch runs.
• Compact footprint (7.4 m) for installation in limited production space.
• Servo-driven index system ensures precise, repeatable positioning.
• Vacuum suction-arm transfer picks blister cards from the punch station and feeds them gently to the blister magazine.
• Leaflet folding configurable from 1 to 4 folds to meet customer requirements.
• Digital position indicators allow quick, repeatable adjustments.
• Carton closing by tuck-in; optional hot-melt unit can be integrated for additional seal security.
• Toolless changeover reduces setup time and increases production uptime.
• Ergonomic sliding doors provide safe, convenient access for operation and maintenance.

Main technical parameters

• Max. output: 200 cartons/min
• Range of carton size: Max 150 x 115 x 50 mm; Min 75 x 30 x 15 mm
• Machine power: 24 kW
• Machine dimension (L x W x H): 7400 x 1700 x 2050 mm
• Machine weight: 5800 kg
