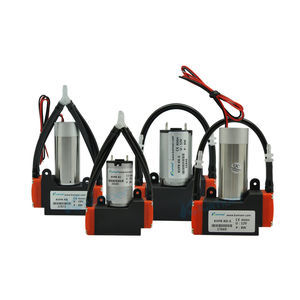

Laboratory vacuum pump HLVP15 series

diaphragm

A variety of models such as parallel and series are available. HLVP15 series diaphragm pump is designed according to the design principle of positive displacement pump. Following the simple design style of KAMOER, the products are beautiful and generous. HLVP15 adopts high performance brushless motor and high quality engineering plastics, the product performance is stable and reliable, does not need daily maintenance, long service life. There are three types of valve upper plate for HLVP15, and the outlet direction can be freely changed from top to bottom, left to right. Customers can realize personalized customization according to their actual needs. The fluid medium Air, general gases The work environment Temperature range: Ot-50t Relative humidity: <80% The product weight Type A 240G Type B /C 360G Rated power 10W Product life 8000H Protection grade 1P42 Pump head material PPS Diaphragm material EPDM The motor type Brushless motor * Flow: Under standard atmospheric pressure, the product is run without load, and the outflow flow is tested; * Noise: no load operation of the product; Decibel meter distance 50CM distance; Mute room (ambient noise 40d8) test; * Life: the income under normal working conditions (refer to working environment). Bad condition 1, will reduce the life of the product; * Pressure: the maximum pressure parameters that can be output by the pump under standard atmospheric pressure, normally energized; * Positive pressure: HLVP15-CIXX series model blocked air will lead to motor blocking, so it can not be used as positive pressure
